Amana Tool

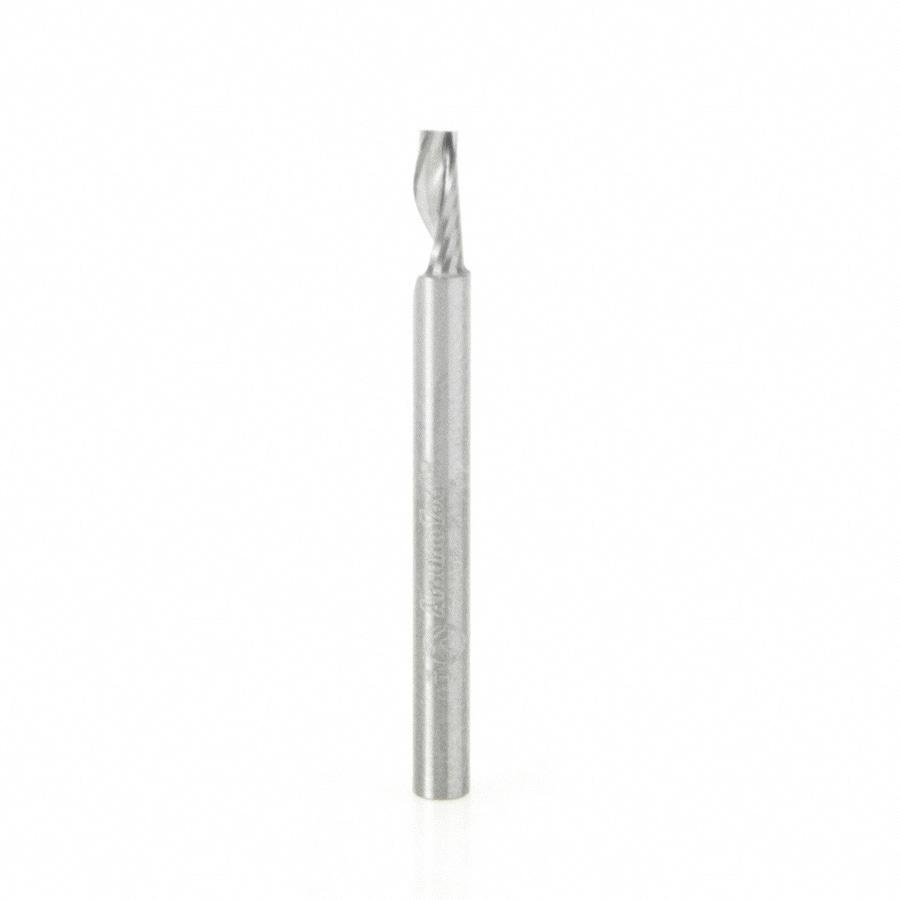

Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Diameter x 5/16 x 1/8 Shank Up-Cut

SKU: 51406

order today only 1 left in stock

Description

Amana Tool 51406 Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Diameter x 5/16 x 1/8 Shank Up-Cut

SKU: 51406

Direction:	Up-Cut
(D) Diameter:	1/8"
(B) Cutting Height:	5/16"
(d) Shank:	1/8"
(L) Overall Length:	1-1/2"
Flutes:	1

Overview
Tool Data Downloads

To be used only on CNC machines and routers with automatic feeding.

Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish, and a longer tool life. Right-hand helix right-hand cut.

Specifically designed for a variety CNC machining applications excellent for cutting:

ALPOLIC® Copper Composite
Material (CCM)
Alucobond®
Aluminum
Aluminum 5052
Aluminum 6061
Aluminum Alloys
Aluminum Composite
Materials (ACM)
Aluminum Composite Panel (ACP) *
Alupanel®
Brass
Copper
Dibond®
Durabond **
e-panel™
Etalbond®
Fomex® with Aluminum Face
Gold
Non-Ferrous Metals
Plastic
Silver
Solid Surface
Titanium Composite Material (TCM)
Wood

*Aluminum composite panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for building facades external cladding insulation and signage.

**Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.

Ideal for industrial applications our spiral ‘O’ flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive.

Benefits of Mirror-Finish:

Razor-sharp cutting edge
Effortless chip removal
Helps prevent chip re-welding
Extends tool life
Exceptional cut quality
Dissipates heat well and prevents melting

Warning: Never attempt to cut ferrous metals with these bits.

Inspect cut quality adjust feed/speed accordingly.

For optimal results and extended tool, life use a mist lubricant system or air cooling.

Maximum RPM: 35,000

Router collet reducer RB-102 (1/4 to 1/8) available for 1/8 shank bits.

Tool #51406 Vectric Compatible Tool File
51406 tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D, and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.
Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

51406 Tool File

Speed & Feed Rates
