Amana Tool

Carbide Tipped V-Groove 90 Deg x 1-1/4 Diameter x 9/16 x 1/2 Inch Shank

Name: Carbide Tipped V-Groove 90 Deg x 1-1/4 Diameter x 9/16 x 1/2 Inch Shank
Brand: Amana Tool
SKU: 45726
Price: 106.00 CAD
Availability: InStock

SKU: SKU:45726

$106.00

Sale Sold out

Order today only 1 left

Quantity

Free Shipping

Click Checkmark for Details

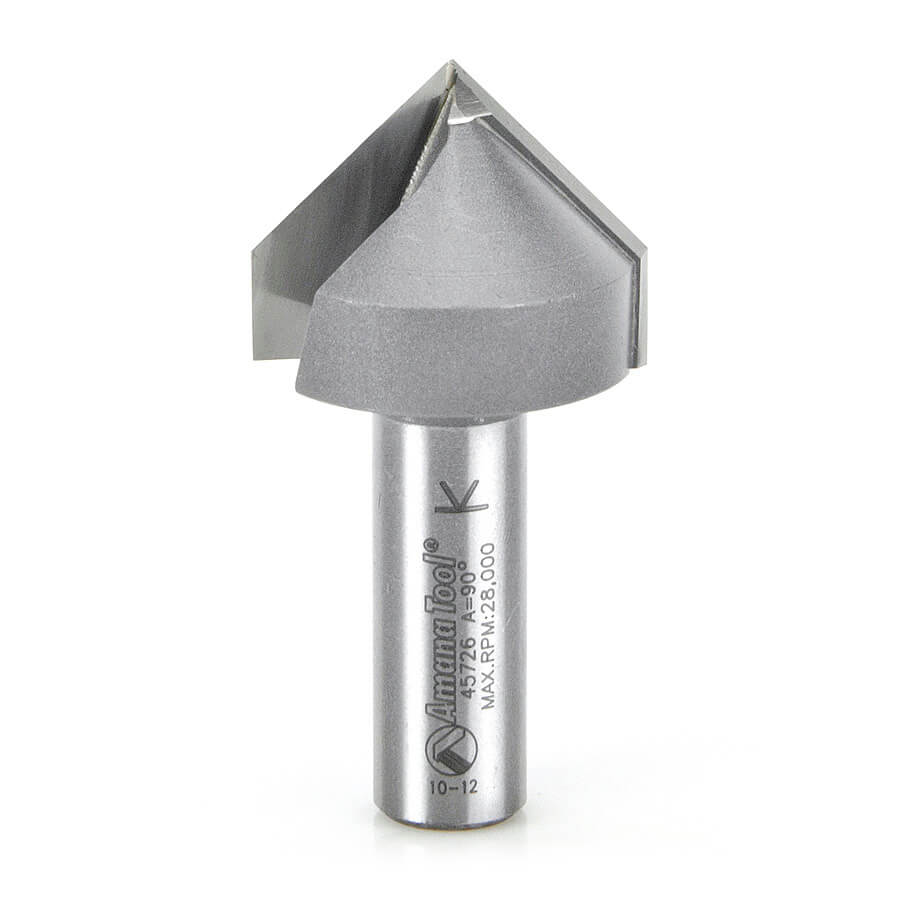

Amana Tool Carbide Tipped V-Groove 90 Deg x 1-1/4 Diameter x 9/16 x 1/2 Inch Shank

SKU: 45726

Angle (a°):	90°
(D) Diameter:	1-1/4"
(B) Cutting Height:	9/16"
B1:	1"
(d) Shank:	1/2"
(L) Overall Length:	2-1/2"
Flutes:	2

Overview
Tool Data Downloads

Overview

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Excellent for cutting:

Tool Data Downloads

Tool #45726 Vectric Compatible Tool File
The 45726 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File

Speed & Feed Rates
