Amana Tool

Carbide Tipped Bowl & Tray 1/8 Radius x 1/2 Dia x 1/2 x 1/4 Inch Shank

Name: Carbide Tipped Bowl & Tray 1/8 Radius x 1/2 Dia x 1/2 x 1/4 Inch Shank
Brand: Amana Tool
SKU: 45981
Price: 41.98 CAD
Availability: InStock

SKU: SKU:45981

$41.98

Sale Sold out New

Order today only 2 left

Quantity

Free Shipping

Click Checkmark for Details

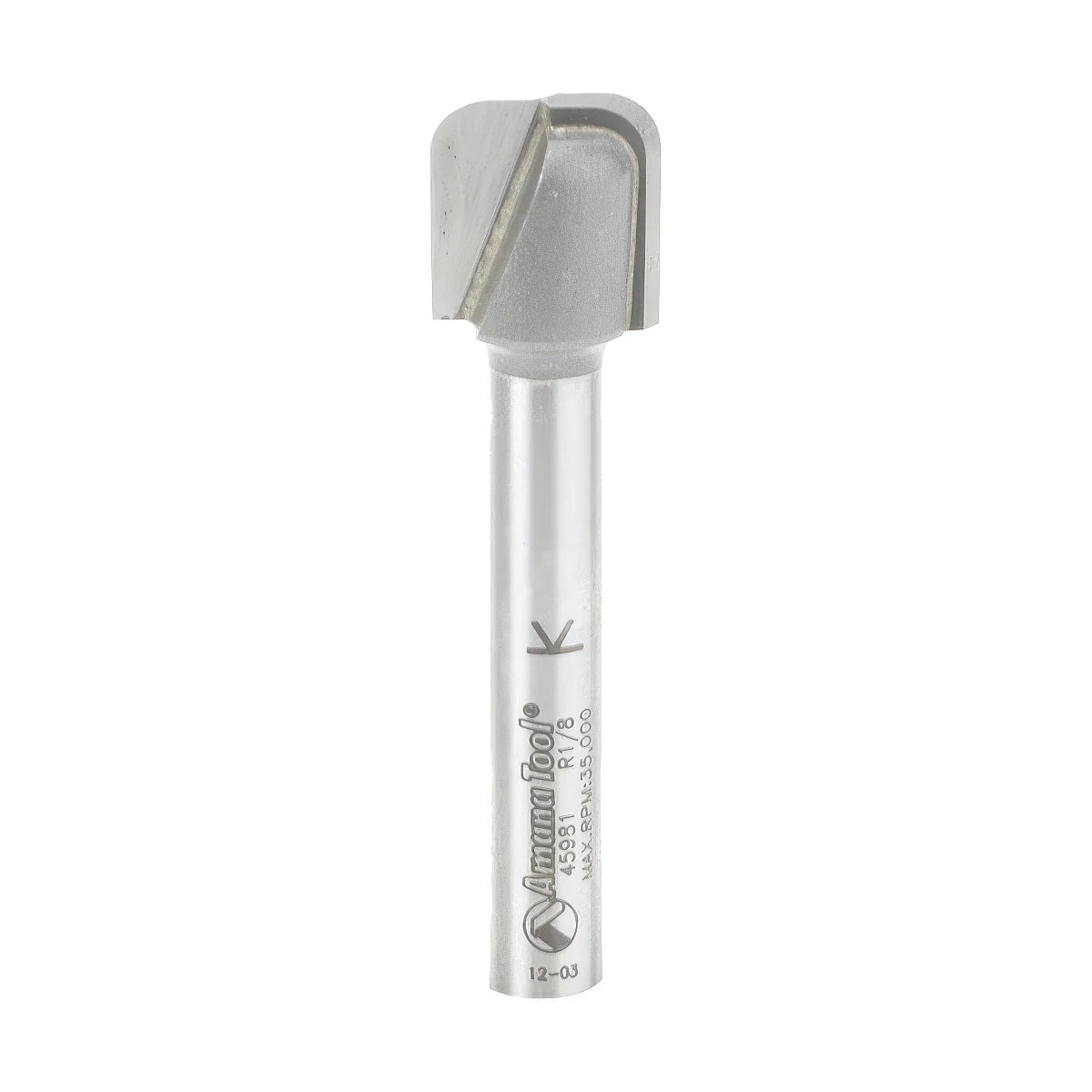

Amana Tool Carbide Tipped Bowl & Tray 1/8 Radius x 1/2 Dia x 1/2 x 1/4 Inch Shank

SKU: 45981

(D) Diameter:	1/2"
(R) Radius:	1/8"
(B) Cutting Height:	1/2"
(d) Shank:	1/4"
(L) Overall Length:	2-1/8"
Flutes:	2

Overview
Tool Data Downloads

Overview

For routing solid wood serving trays, flat dishes, shallow bowls, and similar objects, use this 3-in-1 specialty plunging bit. It cuts flat, smooth bottom surfaces, vertical walls, and a transition radius between them, all in one pass. It can be used in handheld, table-mounted and CNC routers.

Tool Data Downloads

Tool #45981 Vectric Compatible Tool File
The 45981 tool file is part of the Amana Master Tool File to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve. This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material. Installation: 1. Download to a safe location such as your desktop. 2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.

Master Tool File

View full details
