Amana Tool
Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Diameter x 1/4 x 1/4 Shank Up-Cut ZrN Coated Router Bit
Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Diameter x 1/4 x 1/4 Shank Up-Cut ZrN Coated Router Bit
SKU: SKU:51474-Z
5 in stock
Couldn't load pickup availability
Click Checkmark for Details

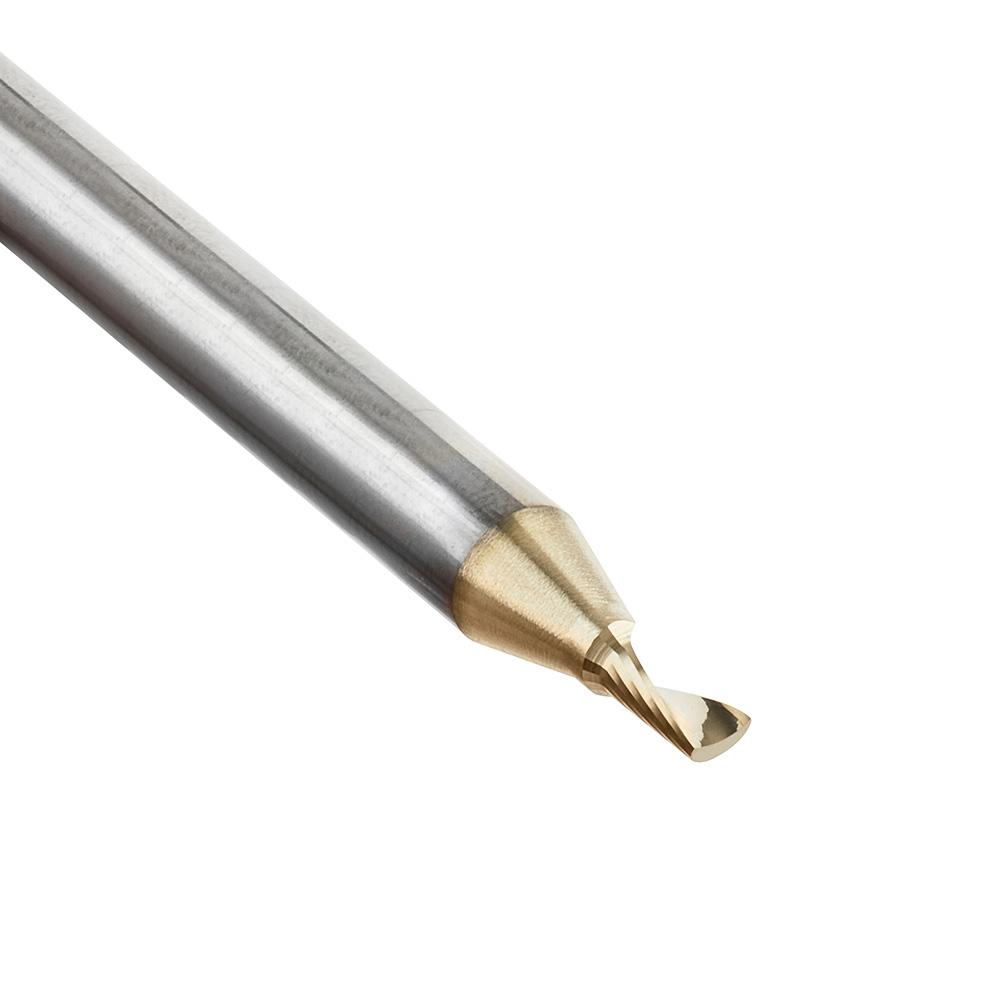

Amana Tool 51474-Z Solid Carbide CNC Spiral 'O' Flute, Aluminum Cutting 1/8 Diameter x 1/4 x 1/4 Shank Up-Cut ZrN Coated Router Bit
SKU: 51474-Z
| Direction: | Up-Cut |
|---|---|
| (D) Diameter: | 1/8" |
| (B) Cutting Height: | 1/4" |
| (d) Shank: | 1/4" |
| (L) Overall Length: | 2" |
| Flutes: | 1 |
- Overview
- Tool Data Downloads
To be used only on CNC machines and routers with automatic feeding.
Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish, and a longer tool life. Right-hand helix right-hand cut.
Specifically designed for a variety of CNC machining applications excellent for cutting:
- ALPOLIC® Copper Composite
Material (CCM) - Alucobond®
- Aluminum
- Aluminum 5052
- Aluminum 6061
- Aluminum Alloys
- Aluminum Composite
Materials (ACM) - Aluminum Composite Panel (ACP) *
- Alupanel®
- Brass
- Copper
- Dibond®
- Durabond **
- e-panel™
- Etalbond®
- Fomex® with Aluminum Face
- Gold
- Non-Ferrous Metals
- Plastic
- Silver
- Solid Surface
- Titanium Composite Material (TCM)
- Wood
*Aluminum composite panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for building facades external cladding insulation and signage.
**Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side pre-finished requiring no decoration.
Ideal for industrial applications our spiral ‘O’ flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive.
Benefits of Zirconium Nitride (ZrN) Coating
- Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
- Have the tendency to run/spin much faster than an uncoated tool
- Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or workpiece vibrates) under high chip loads (when used with low TIR spindles)
- High flute volume supports high feed rates and chip loads
- High aspect ratio for single pass deep-reach cutting
Warning: Never attempt to cut ferrous metals with these bits.
Inspect cut quality adjust feed/speed accordingly.
For optimal results and extended tool, life use mist lubricant system or air cooling.
Maximum RPM: 35,000
