King Industrial
20" Planer w/Spiral Cutterhead
20" Planer w/Spiral Cutterhead
SKU: SKU:KC-526FX
Regular price
$4,999.00
Regular price
Sale price
$4,999.00
Unit price
/
per
Order today only 1 left
Pickup available at 1372 Mountain Avenue
Usually ready in 24 hours
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

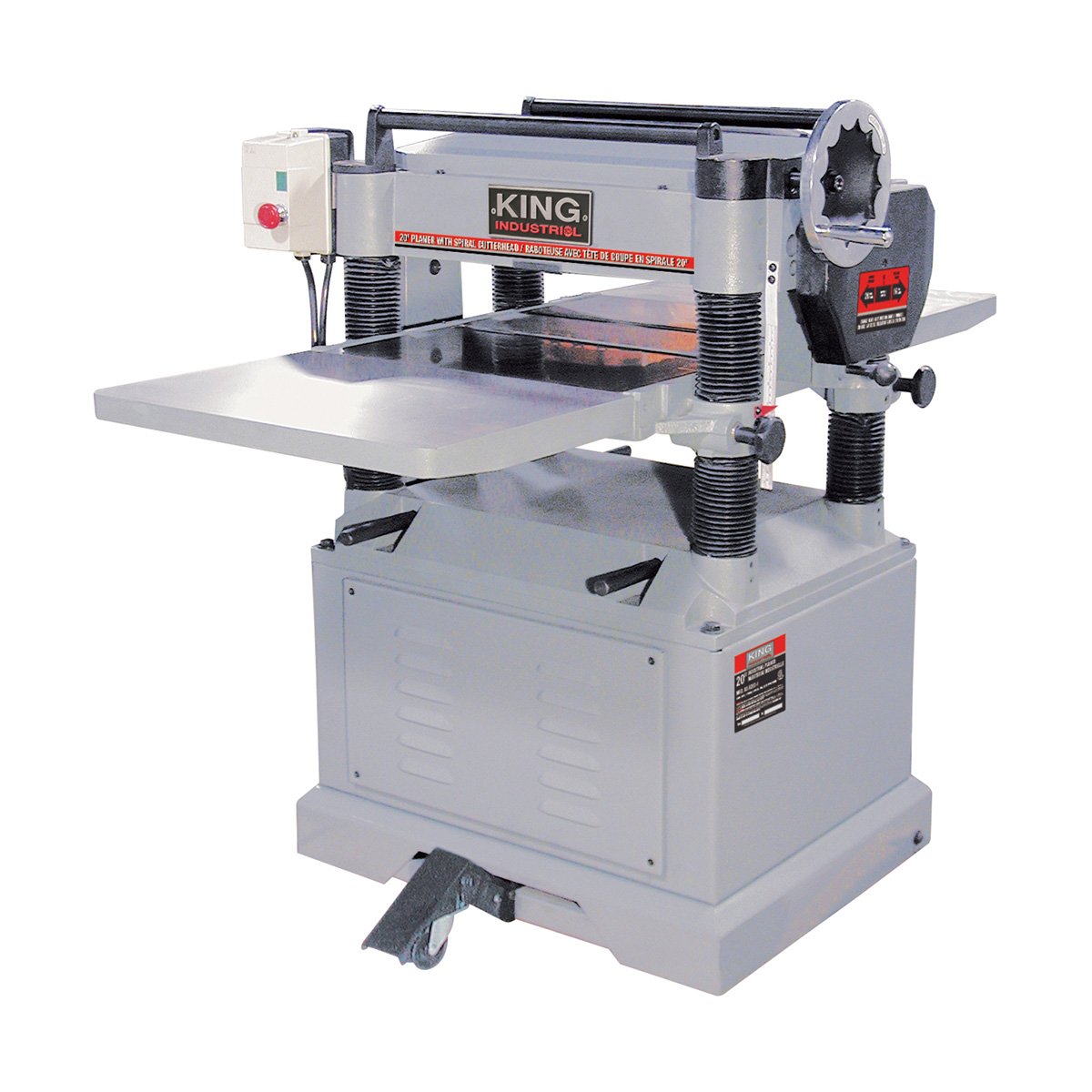

King Industrial® 20" Planer w/Spiral Cutterhead
SKU: KC-526FX
- Overview
- Specifications
Overview
Features:
- Powerful 5 HP motor
- Solid cast-iron extension tables
- Mobile base system built into the cabinet
- A spiral cutter head is 50% quieter than a conventional cutter head
- Table raises and lowers on four precision ground columns
- Anti-kickback fingers in front of the infeed roller prevents wood kickback
- Magnetic safety switch
- 5" dust chute
Specifications
| Maximum Planing Width: | 20" |
|---|---|
| Maximum Planing Thickness: | 8" |
| Maximum Depth of Cut: | 3/32" |
| Total Work Table Surface (L x W) | 56-1/2" x 20" |
| Cutterhead Speed: | 5,000 RPM |
| Cutterhead Diameter" | 3.15" |
| Number of Cutterhead Inserts (4-sided): | 98 |
| Feed Rate: | 2 (16 and 20) FPM |
| Cuts Per Inch: | 104 and 83 (depending on feed rate) |
| Motor: | 5HP, 19A, 220V, 60Hz, 1-Phase |
| Assembled Dimensions: (L x W x H) | 40" x 56-1/2" x 42" |
| Assembled Weight: | 830 lbs |
| Shipping Dimensions (L x W x H): | 38-1/4" x 29-1/4" x 47-1/8" |
| Shipping Weight: | 860 lbs. |
