Oscillating Spindle Sander

Name: Oscillating Spindle Sander
Brand: King Industrial
SKU: KC-OVS-FX3
Price: 2299.00 CAD
Availability: InStock

SKU: SKU:KC-OVS-FX3

$2,299.00

Sale Sold out

Quantity

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

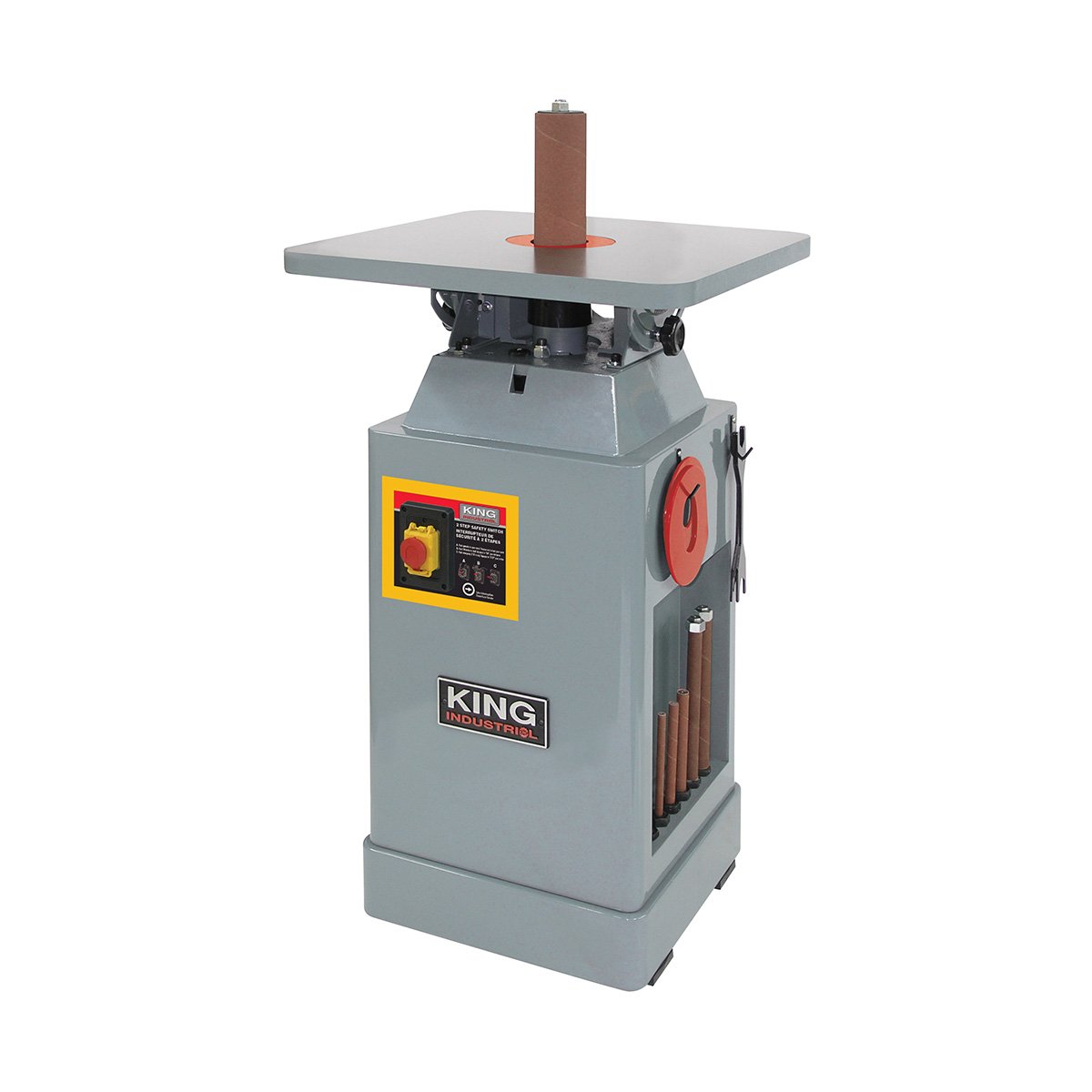

King Industrial© Oscillating Spindle Sander

SKU: KC-OVS-FX3

Overview
Specifications

Overview

Designed for intricate contour sanding operations
2 Step activation safety switch with line voltage interruption in case of power failure

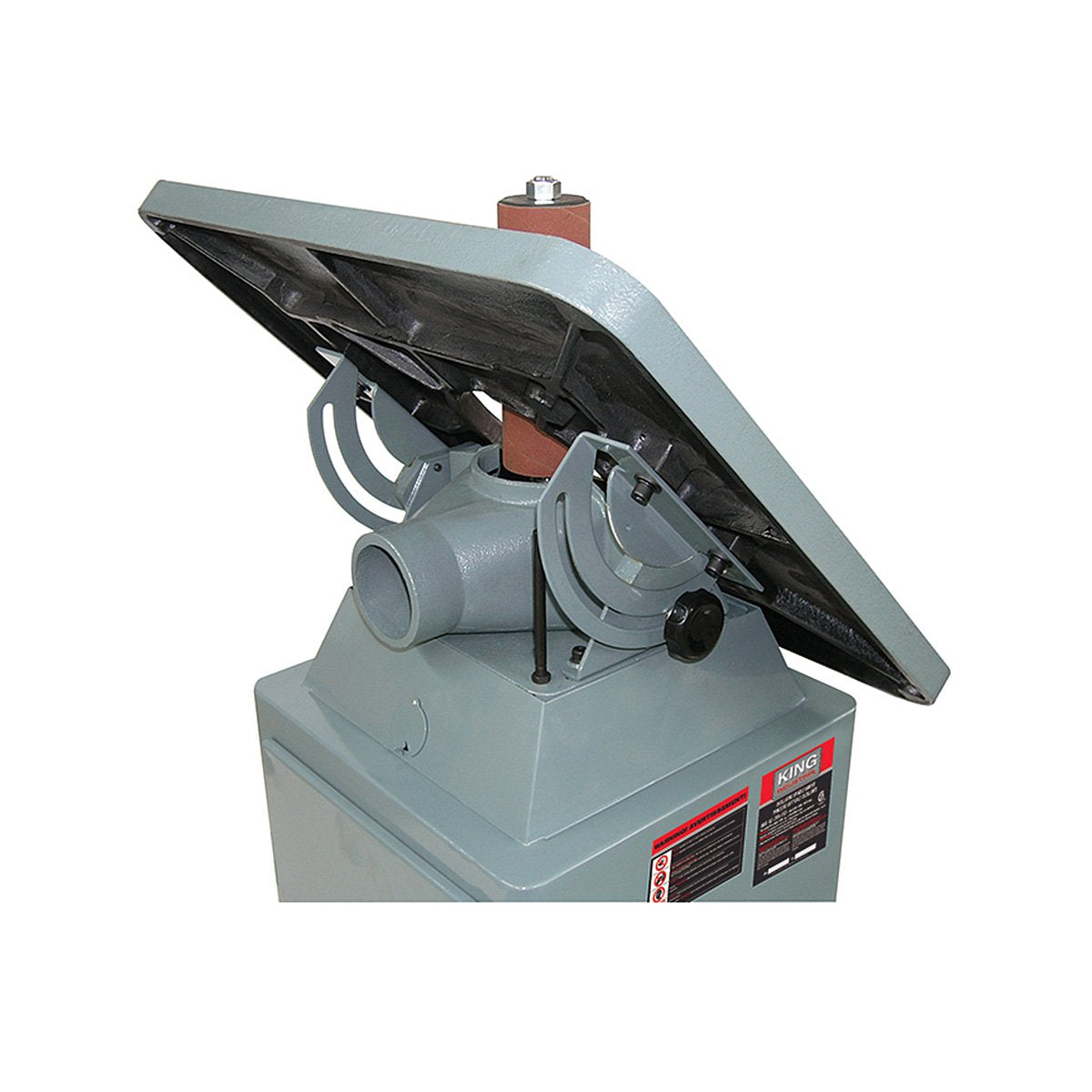

Heavy-duty cast-iron tilting table is precision ground
1" to 4" rubber drums can be fitted on both ends
4" Dust chute for dust collector hook-up
Heavy-duty oil bath gearbox with oil level sight gauge

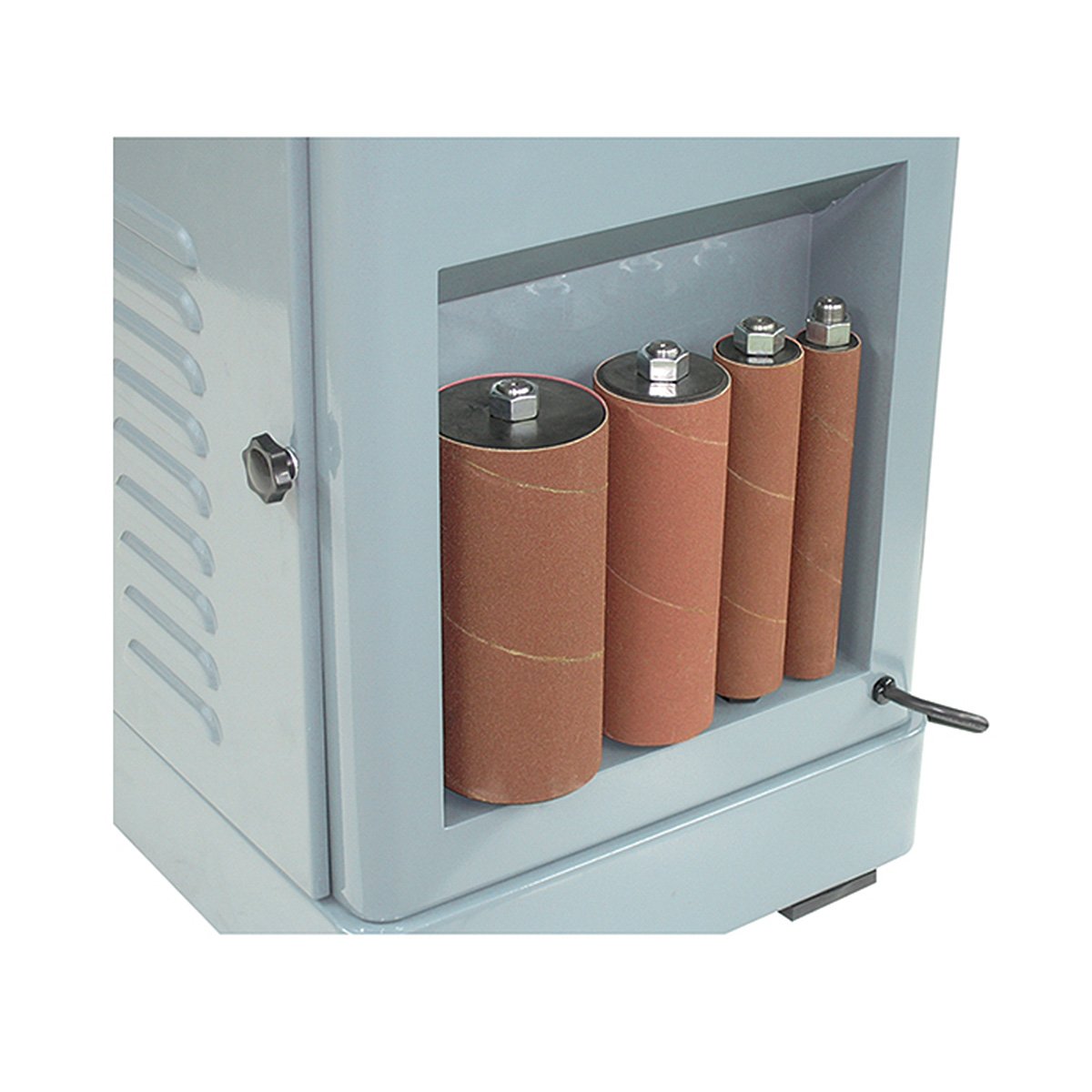

10 interchangeable spindles (1/4" x 5", 3/" x 6" 1/2" x 6", 5/8" x 6", 3/4" x 9", 1" x 9", 1 1/2" x 9", 2" x 9", 3"x 9" and 4" x 9")
Includes 3 interchangeable table inserts and adjustment keys

Specifications

Oscillations per minute	75
Oscillations stroke (In.)	1-1/2"
Spindle drum length (In.)	5" to 9"
Spindle drum diameter (In.)	1/4" to 4"
Spindle speed	1725 RPM
Table size (In.)	24-1/4" x 24-1/4"
Motor	110/220V,10/5A, 60Hz 1-Phase
Pre-wired	110V
Assembled dimensions (L x W x H)/weight	24-1/4" x 24-1/4" x 47-1/4" / 285 lbs
Shipping dimensions (L x W x H)/weight	26" x 26" x 44-1/2" / 320 lbs
