C|Flux:3

Laguna Tools

C|Flux:3 3HP Cyclone Dust Collector

SKU: MDCCF32201

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.

$3,399.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

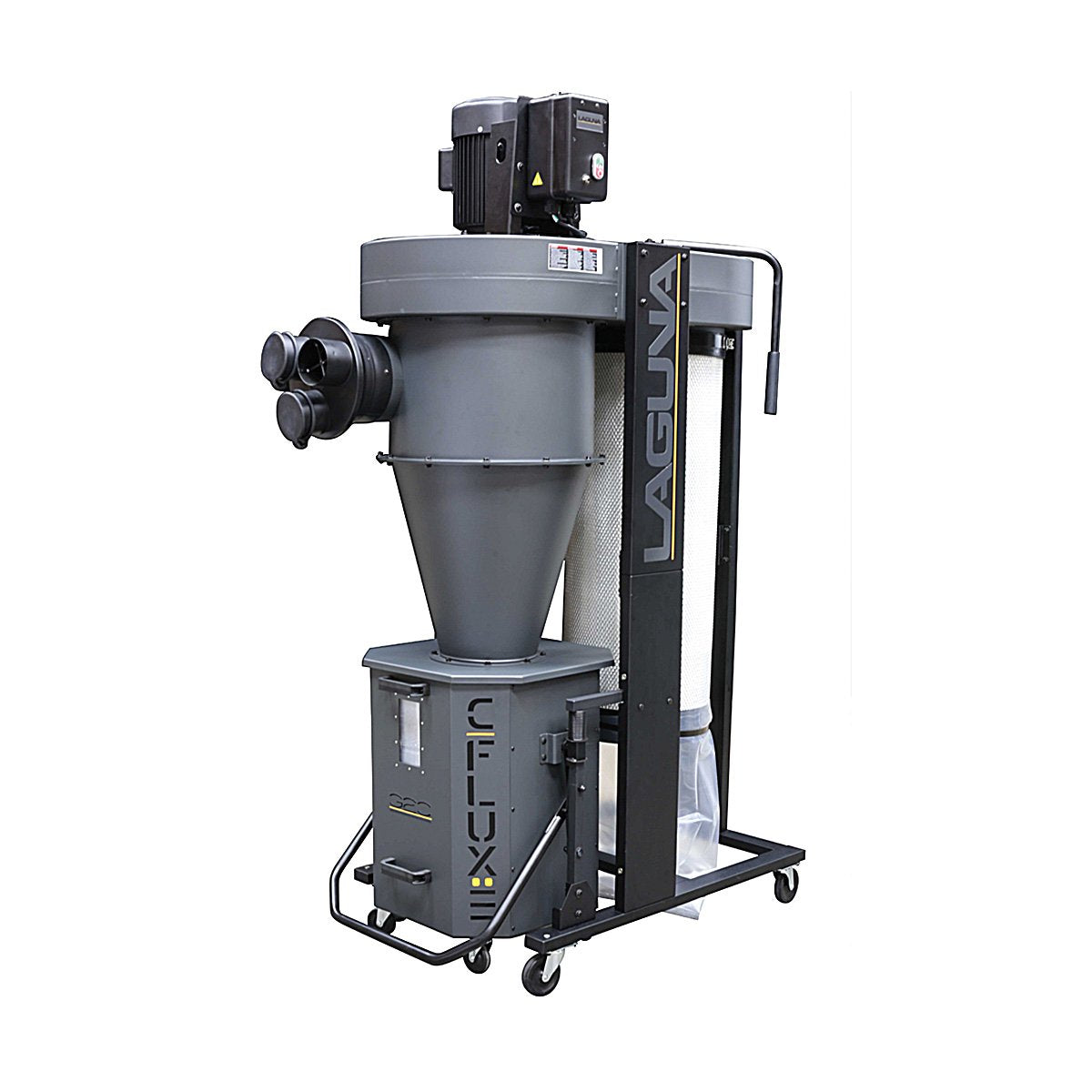

Laguna C|Flux: 3 3HP Cyclone Dust Collector
New 2022 Model

SKU: MDCCF3220

The C|Flux series gets a host of exciting new upgrades including:

  • Variable Port posistioning.
  • Double paddle cleaning system.
  • Drum dust display window to more easily check the dust level.
  • Drums are now 3 piece Clamshell design instead of 5.
  • Base is now equipped with 2 locking casters and 2 free casters that all swivel 360 degrees.
icon

Filter medium used in the canisters is imported from Denmark, guaranteeing the highest quality. Inside the canister you’ll find double paddles to maximize the cleaning effect, and maintain efficient filtration over time.

icon

Laguna Cyclones are built using a premium single-piece plenum engineered to minimize resistance while moving air from fan housing to canister.

icon

All components throughout are high quality, with special attention paid to the casters, gaskets, and fittings… further proving Laguna is truly world class in dust collection and beyond.

icon

Our patented drum-lifting mechanism eliminates clumsy hoses that hinder smooth airflow & provides a strong, reliable seal.


Motor: 3HP, 220V, 60Hz, 14A, 1-Phase
R.P.M. 3450
Hand held remote control High Frequency
Air Volume 1624 CFM
Max Static Pressure (inches of water) 11.2"
Impeller Fan Type/Size/Material Radial Fin/15-1/2"/Steel
Inlet Diameters 1 - 8" or 3 - 4"
Drum Capacity 46 Gallon (US)
Filter Type 1 Micron Canister
Canister cleaning Manual Handle crank. *
Decibel Reading 88 d B(A) (@9.8ft)
Machine Weight 373lbs. (169kgs.)
Shipping Weight 441lbs. (200kgs.)
Assembled Dimensions (L x W x H) 48" x 28" x 88"
Shipping Dimensions (L x W x H) 50" x 31.5" x 50.6"

*Optional Auto cleaning kit available
