Maksiwa CBC.P Platinum Edgebander
SKU: CBC.P
- Overview
- Technical Specifications

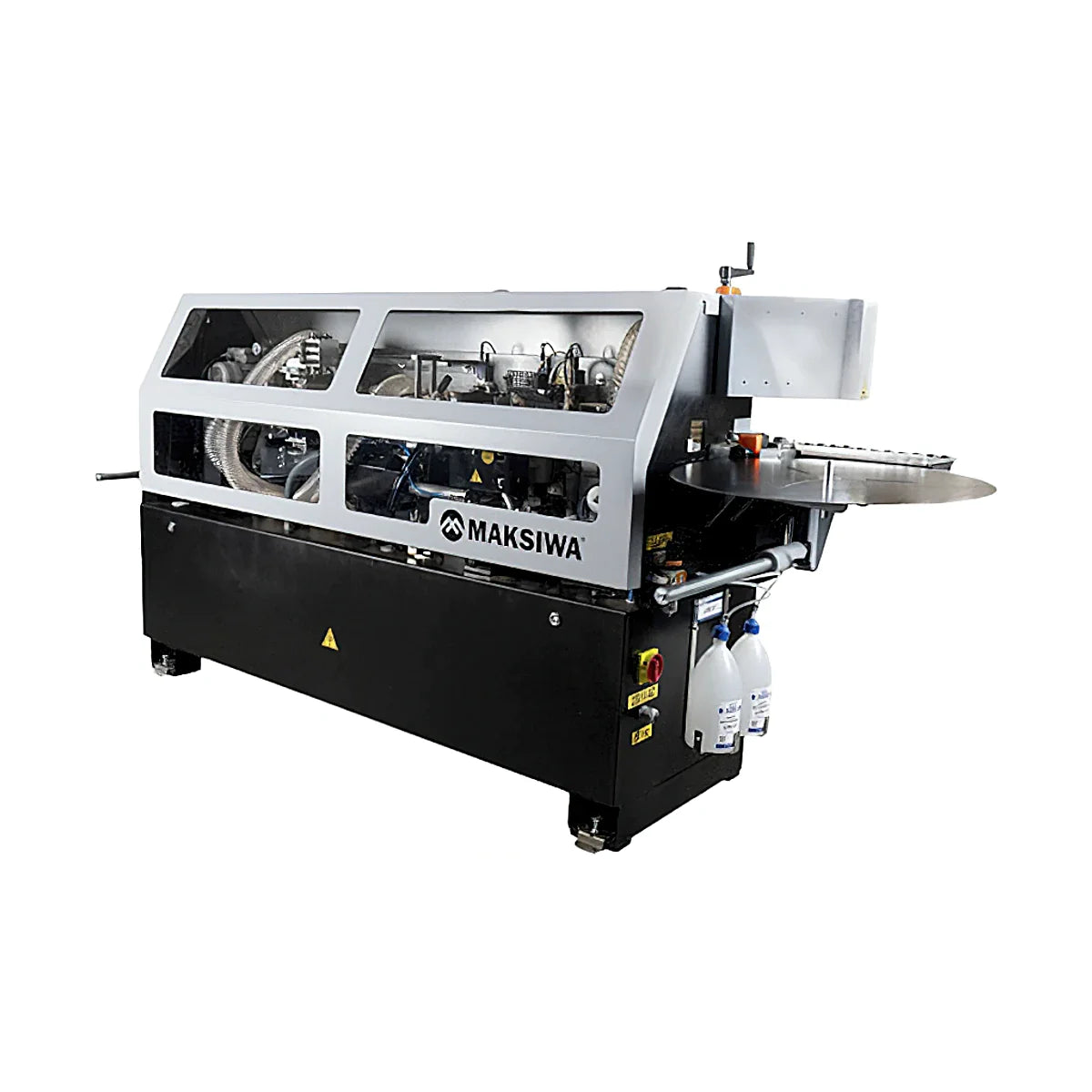

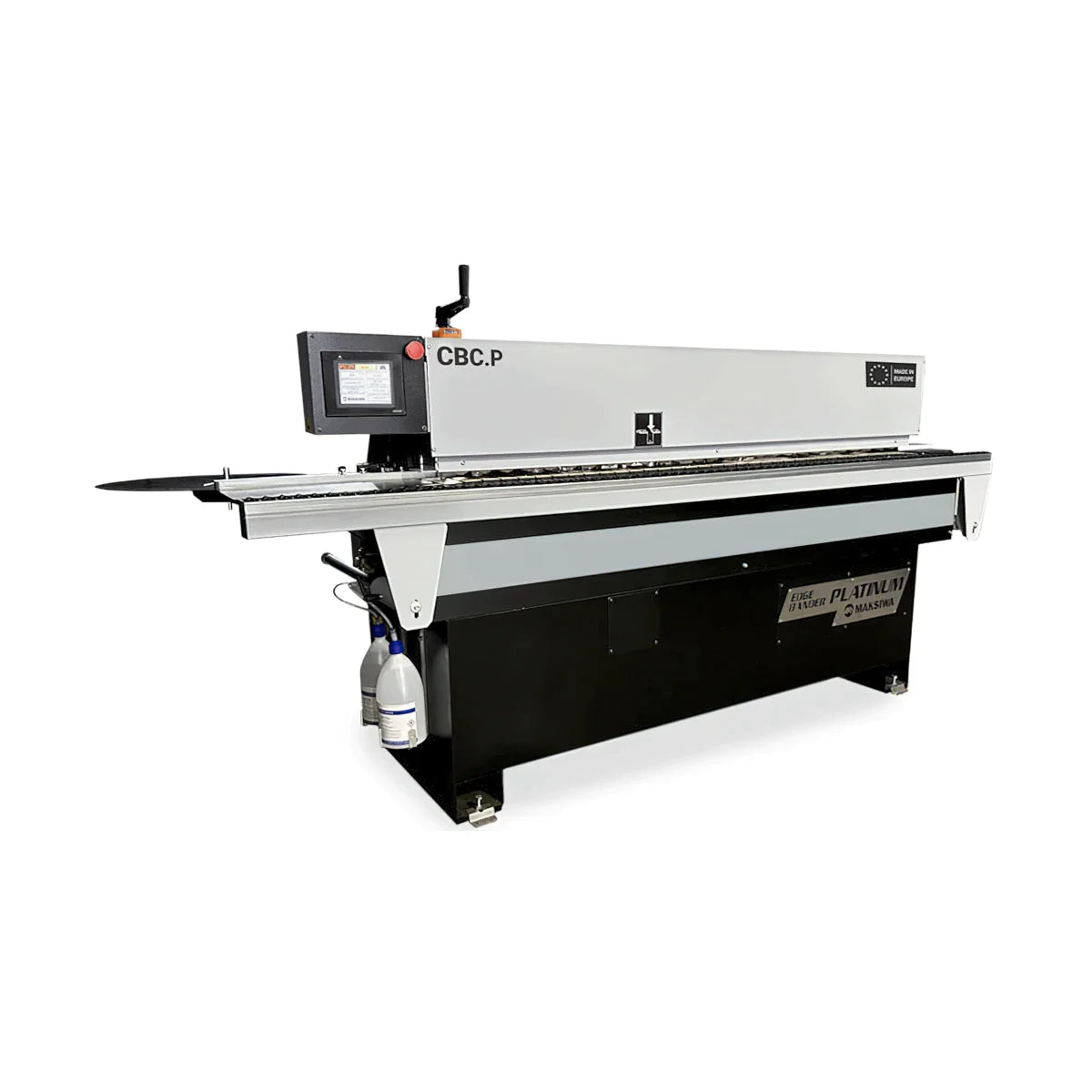

The Maksiwa CBC.P Platinum Automatic Edgebander, is an industrial grade, heavy duty machine that provides high performance and quality finish without compromising space in your shop. With its affordable price, this machine is now within reach of more woodworkers than ever before. Equipped with pre-milling, vertical rounding, glue scraper unit, buffing unit, top and bottom trimming, XMELT glue pot system (works with EVA and PUR Adhesives + easy drainage system), C.A.S.S cleaning agent spraying system, edge tape 0.4-3 mm, panel thickness 10-50 mm, 9HP 1PH 220V. Full PCL Touch Screen Control Panel with user friendly set-up and maintenance makes the CBC.P the perfect addition to the demanding woodworker looking to improve their craft.
Features:

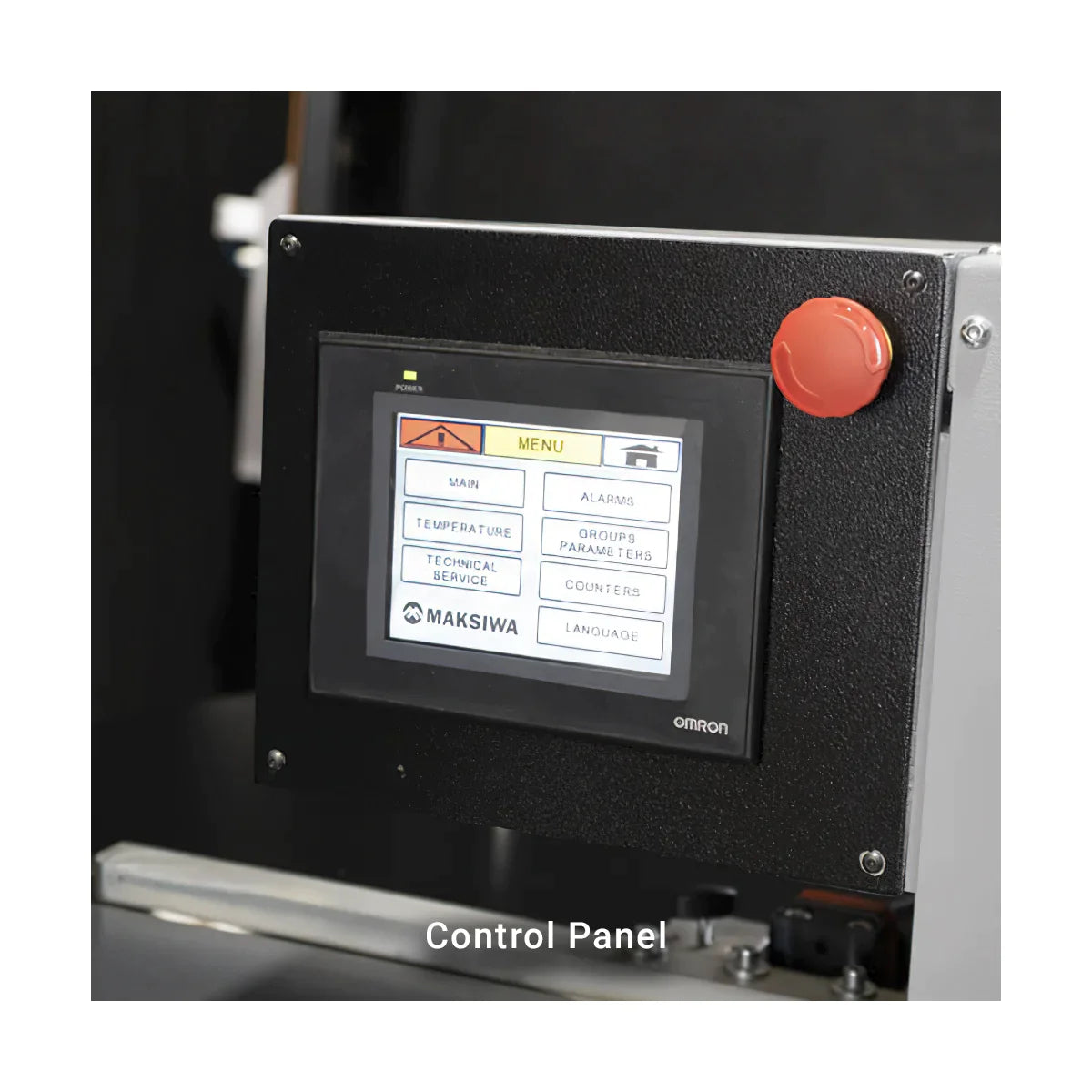

- PLC controlled by TFT touch screen
- Edge Tape: 0.4-3 mm
- Panel Thickness: 10-50 mm
- 9HP 1 Phase 220V 60Hz

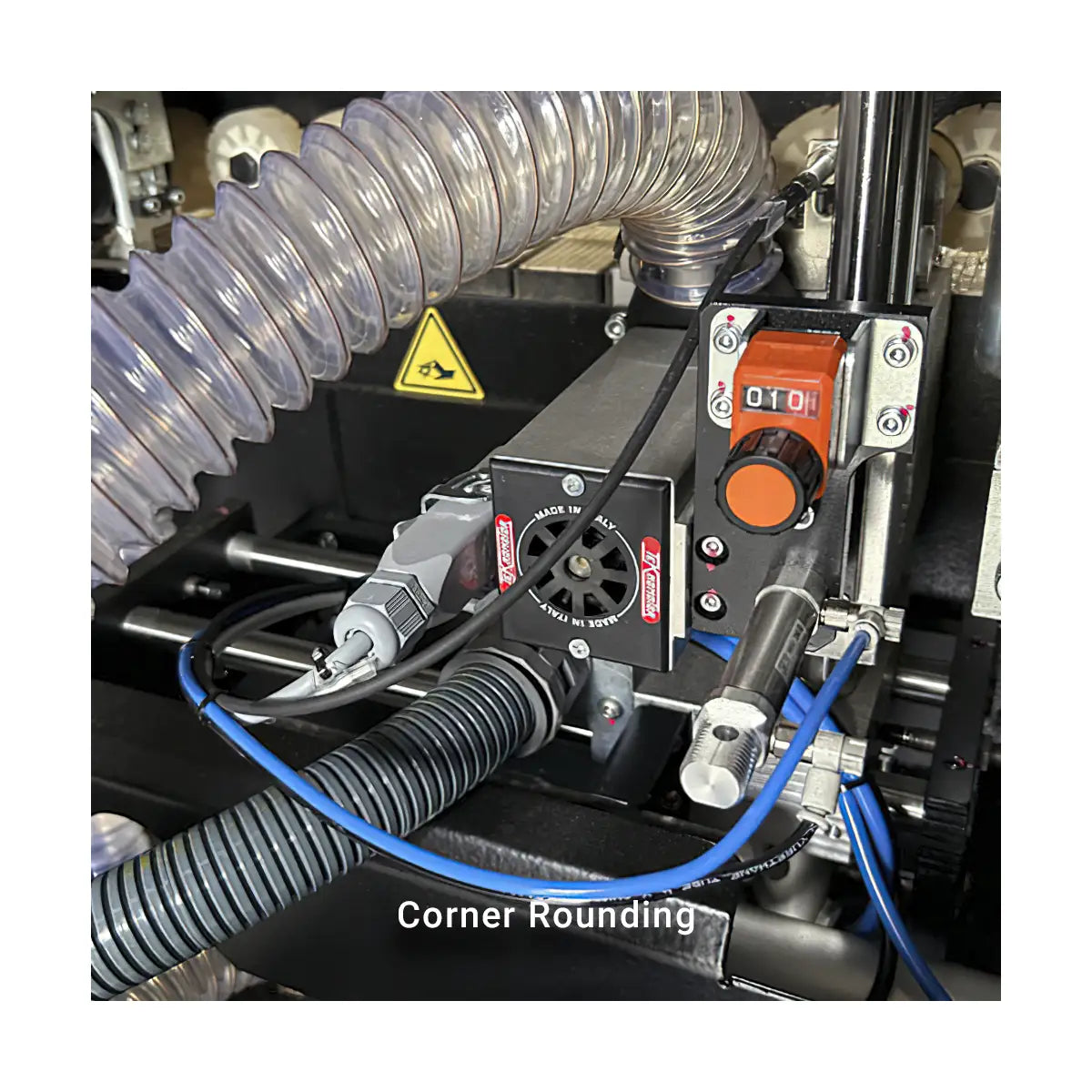

- Vertical Rounding Unit

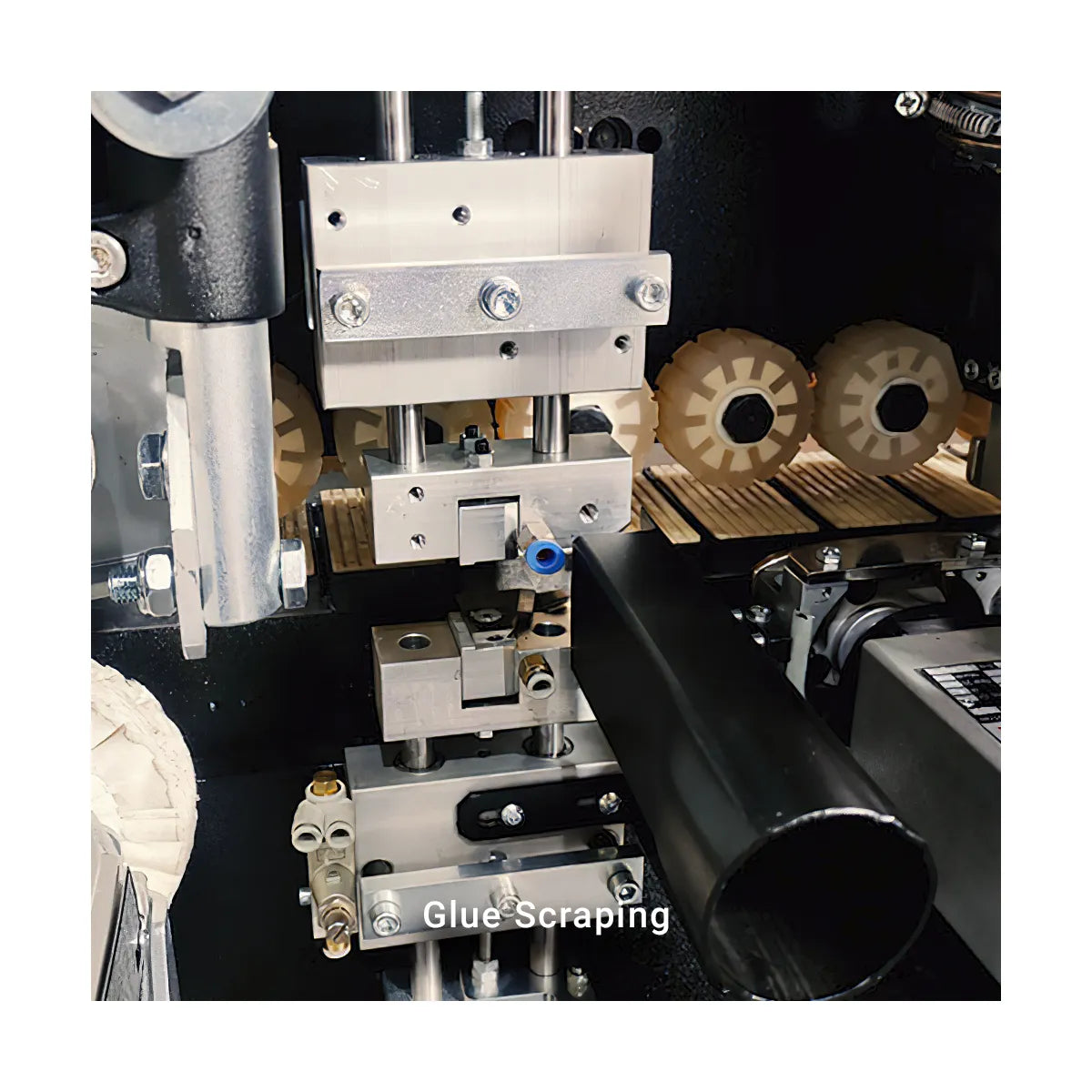

- Glue Scraper Unit

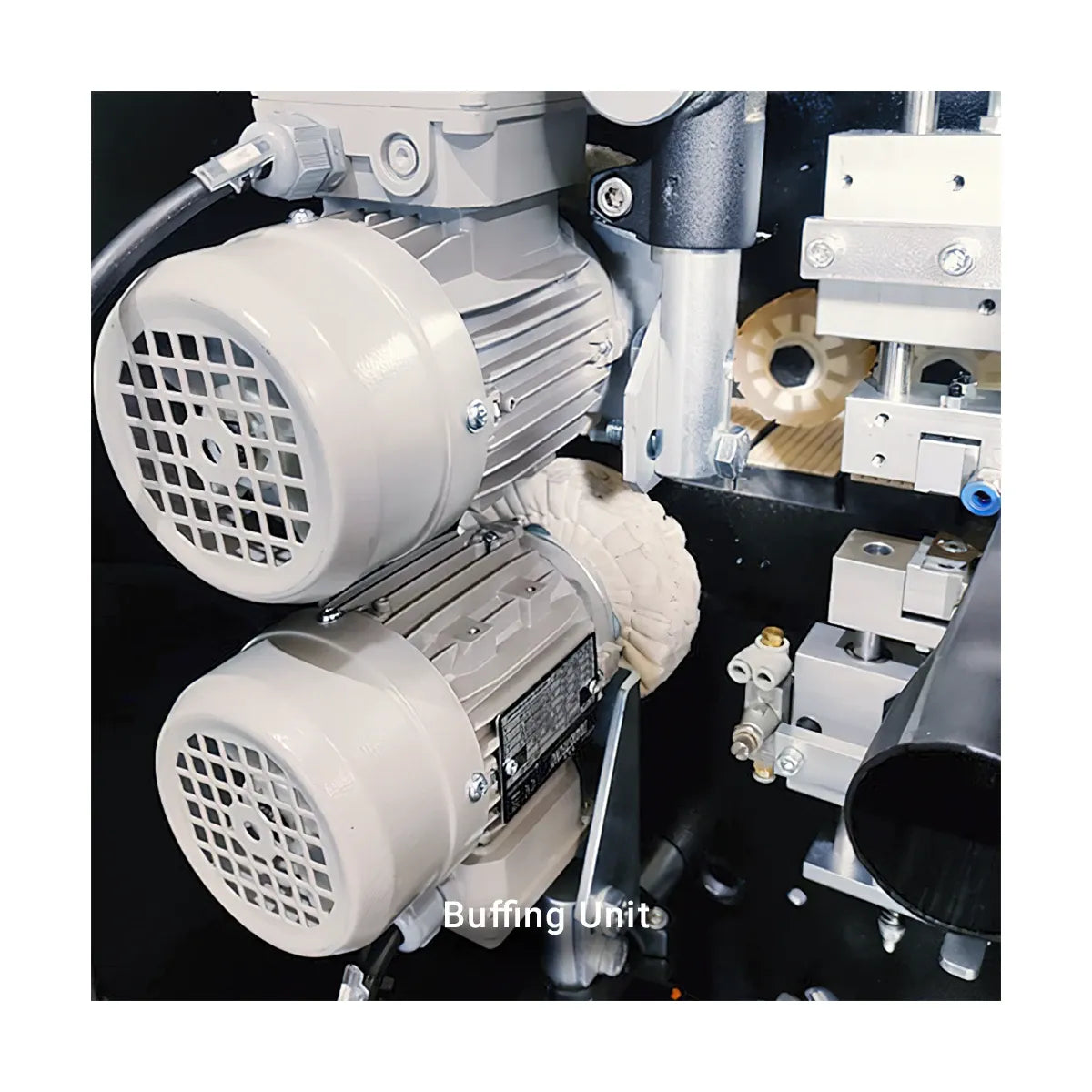

- Buffing Unit 1400 RPM
- End Tri mming HF Motor

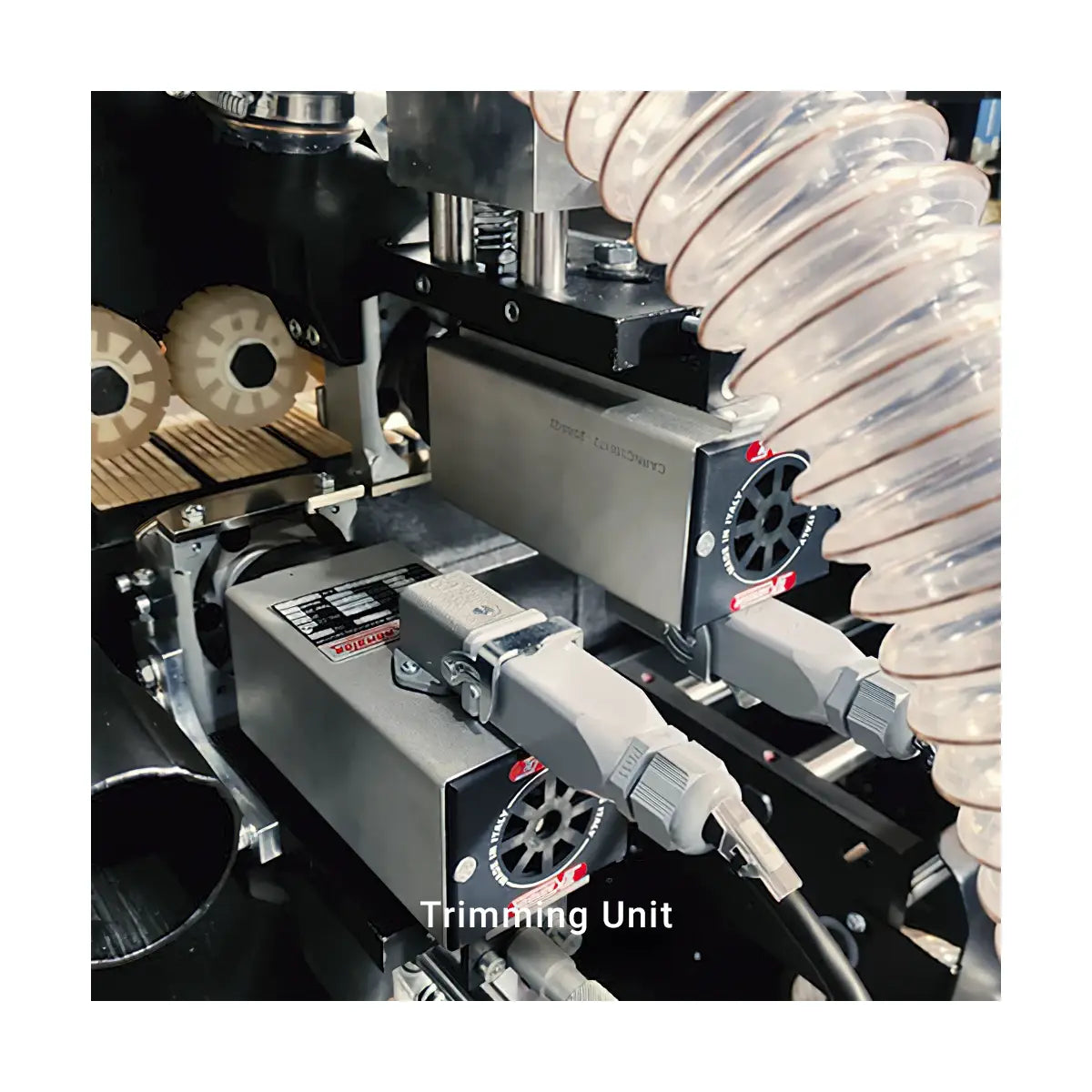

- Top and Bottom Tri mming 2 HF Motors 12.000 RPM

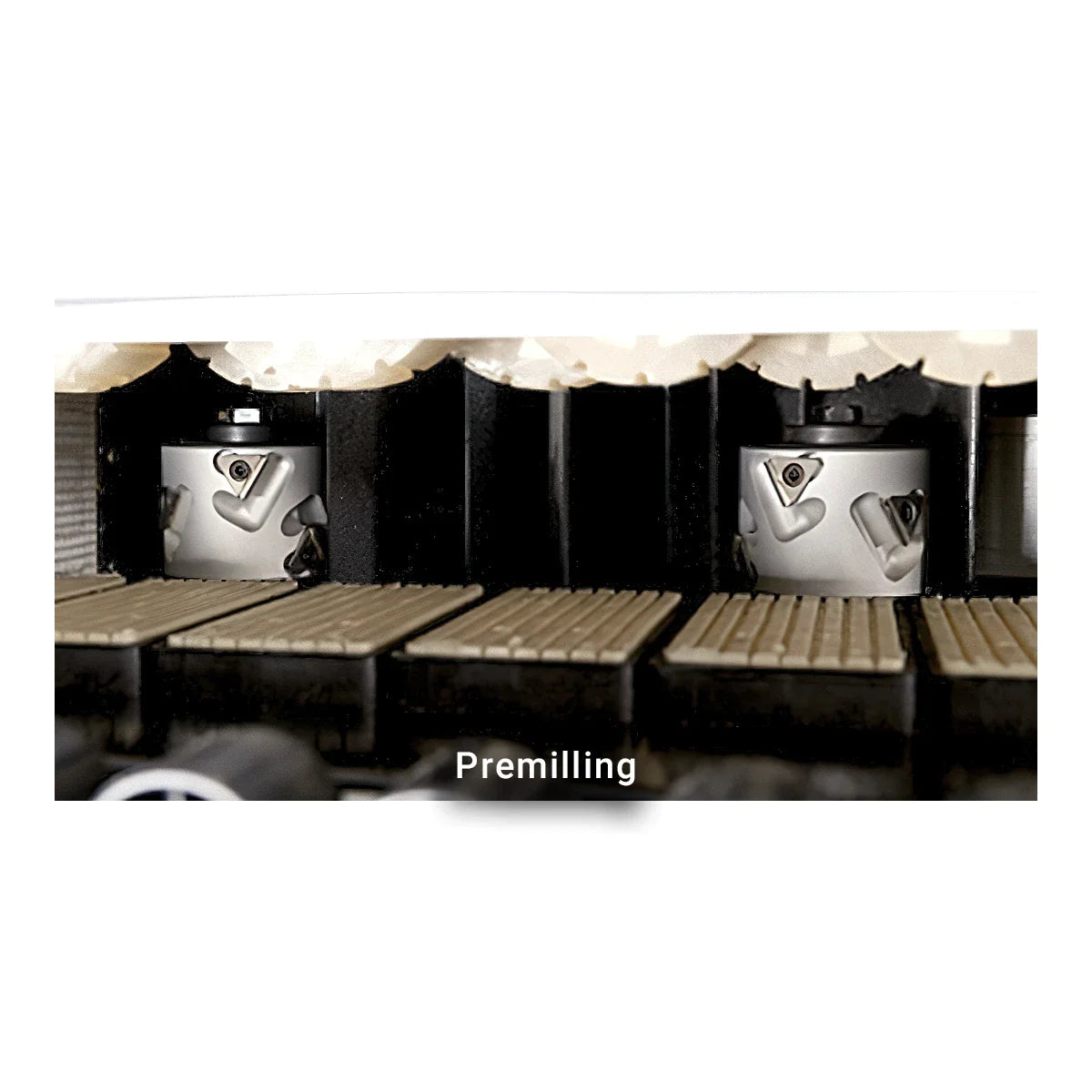

- Pre-milling Unit 2 HF Motors with Diamond Cutters
- XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)

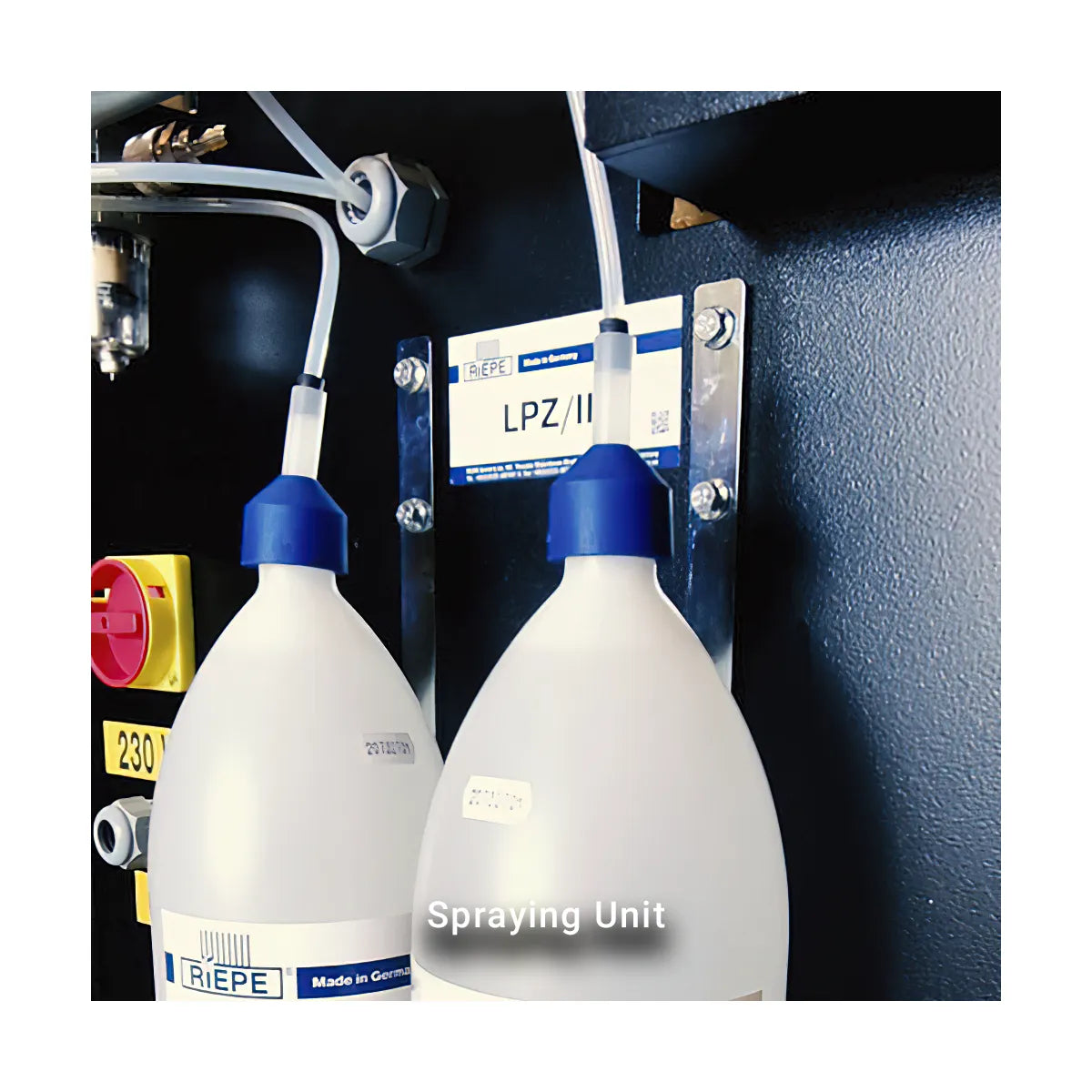

- C.A.S.S - Cleaning Agent Spraying System
- Stand-by mode: Only one click to re-start production.
- Glue Pot Capacity 1.5kg | 3.3 lbs Teflon Coated
- Centralized Dust Collector with automatic ON/OFF
- 12 mm Thickness Solid Oxycut monoblock structure and industrial drag chain to handle large workloads

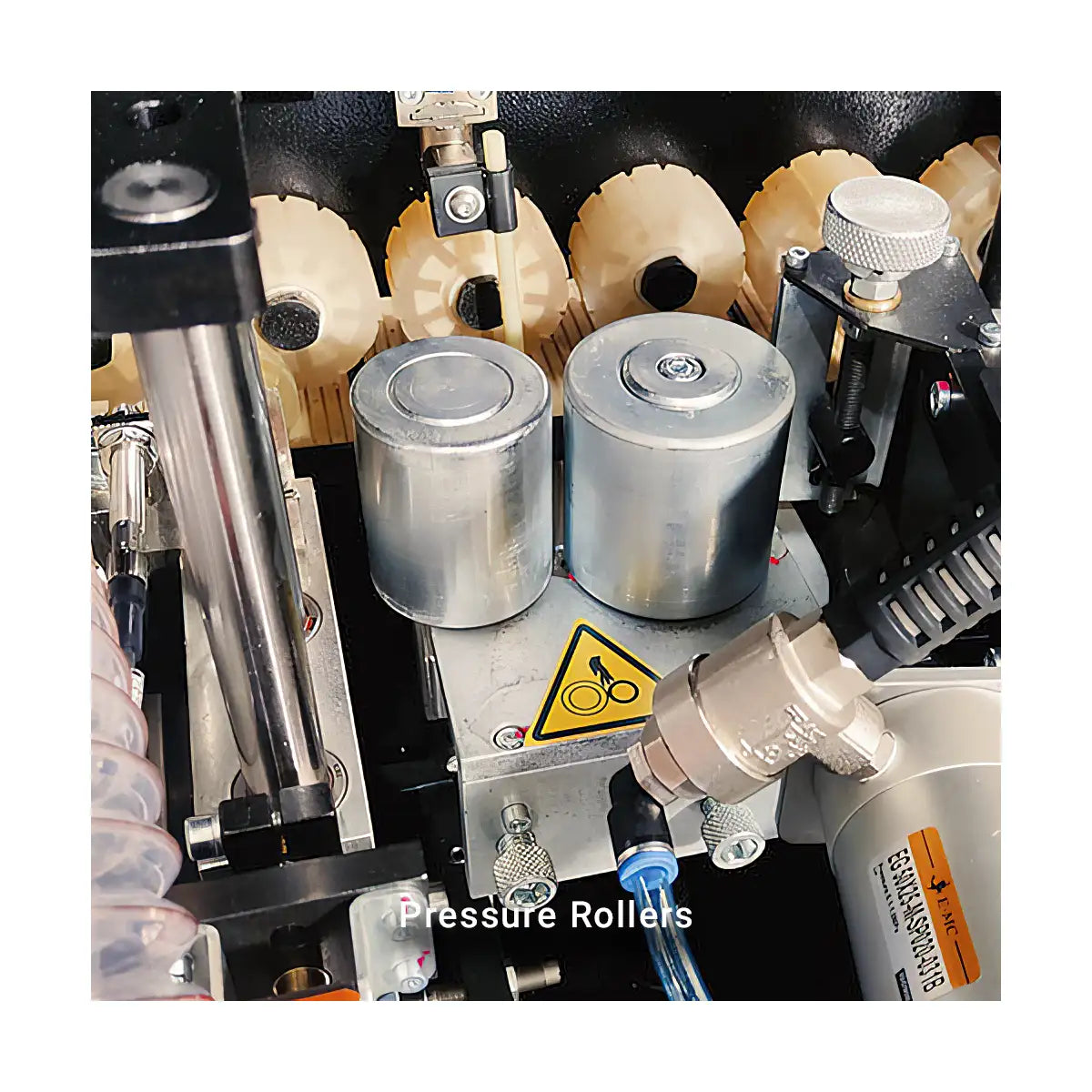

- Spring Loaded Pressure Unit with (2) Pressure Rollers
- Reinforced Pressure Beam with (2) Prismatic guides or maximum guiding accuracy
- Conveyor Chain Feed System for optimum results. Feed speed of 23 FPM
- HF motors controlled by independent electronic converters
- Gross Weight 920 kg / 2029 lbs
- Compact Design ( mm/ft) 2839 x 864 x1232 mm/112 x 34 x 49 inches
- Melamine/PVC/ABS/PP/Solid Wood Strip
CBCP
| Automatic Feeding speed: | 23 ft/min (7 m/min) |
|---|---|
| Panel thickness Min/Max: | 13/32” - 1 31/32” (10 - 50 mm) |
| Max Pre-milling Height: | 1" (30 mm) |
| Edgebanding thickness: | (0.4 - 3 mm) |
| Glue Pot Capacity: | 3.3 lbs (1.5kg) |
| Max Edgebanding Height: | 2" (51 mm) |
| Minimum panel width: | 3" (75 mm) |
| Minimum panel length: | 7-7/8" (200 mm) |
| Extendable Panel Support Rail Length: | 102" (2607 mm) |
| Extension table Max Width: | 54" 1371 mm |
| Size of Dust Collector Ports: | 6" (150 mm) |
| Minimum Dust Collection Requirements: | 1236 CFM (2100 m3/h) |
| Air Pressure Requirement: | 13.4 SCFM @ 87PSI (0.6 Mpa) |
| Edgebanding coil Support Diameter: | 59" (1498 mm) |
| Recommend Glue Temperature Range: | 356°F - 410°F (180°C - 210°C) |
| Glue Type: | High Temp. Granulated Hot-Melt EVA / PUR |
| Maximum machine dimensions (LxWxH) | 112”x 34”x 49” (2839 x 864 x 1232 mm) |
| Net weight: | 1719 lbs (780 kg) |
| Shipping dimensions (LxWxH): | 86” x 36” x 57” (2839 x 3962 x 1232 mm) |
| Sound Rating: | 80 dB |
| Electrical Requirement: | 1 Phase 220V 30 Amps 60 Hz |
| Top/Bottom Trimmer HFM: | 200 Hz 12,000 RPM .27kw |
| End Trimmer Motor: | 200 Hz 12,000 RPM .27kw |
| Front/Rear Pre-Milling HFM: | 150 Hz 9000 RPM .75/.25Kw |
