Nova
16" DVR Benchtop Drill Press
16" DVR Benchtop Drill Press
SKU: SKU:83702
Regular price
$1,549.99
Regular price
Sale price
$1,549.99
Unit price
/
per
8 in stock
Couldn't load pickup availability
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

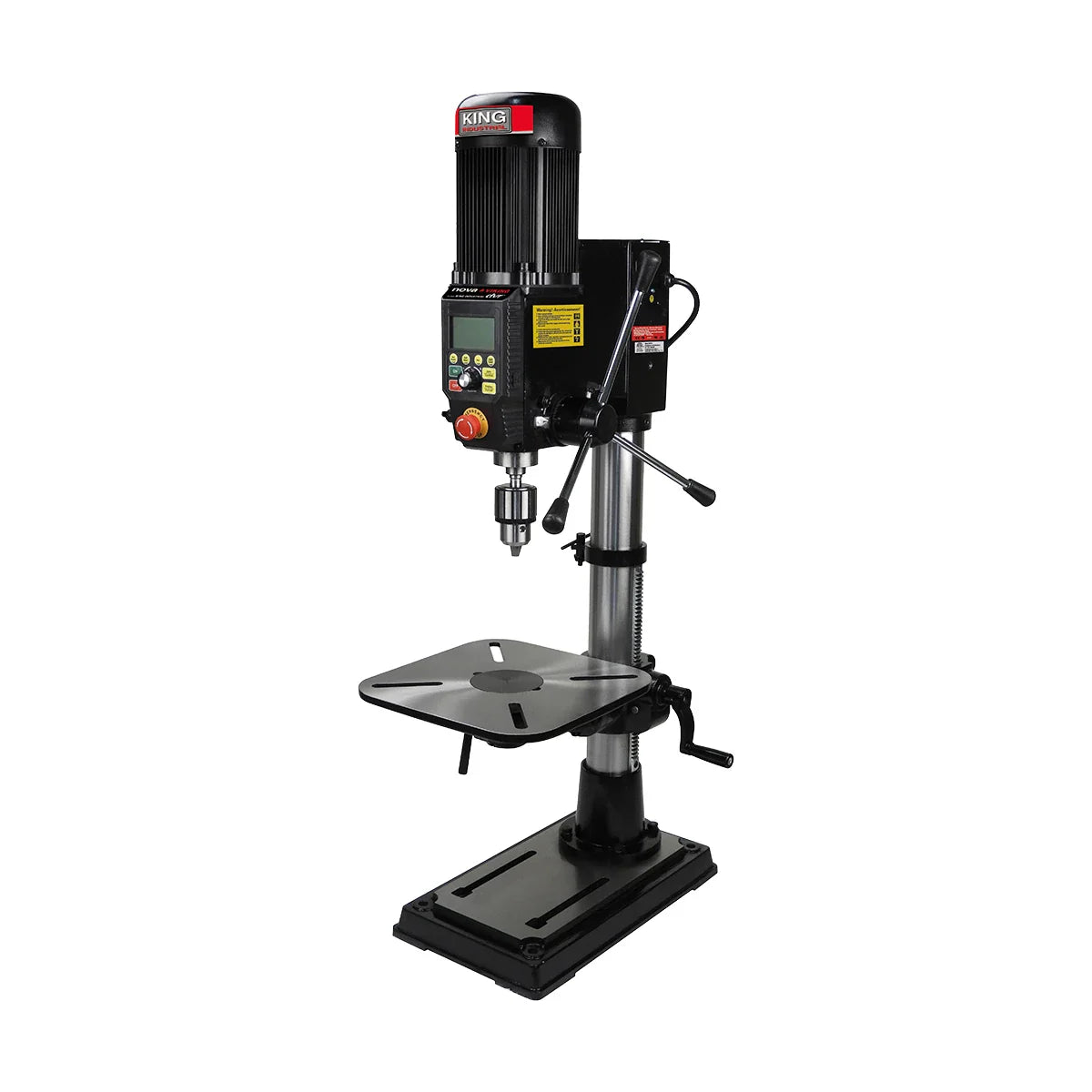

Nova Viking 16" DVR Benchtop Drill Press
SKU: 83702
- Overview
- Specifications
Overview
Features:
- Smart drill press combines common drill press features with state of the art technology
- Powerful direct drive 1 HP high torque motor with no pulleys or belts to cause vibration

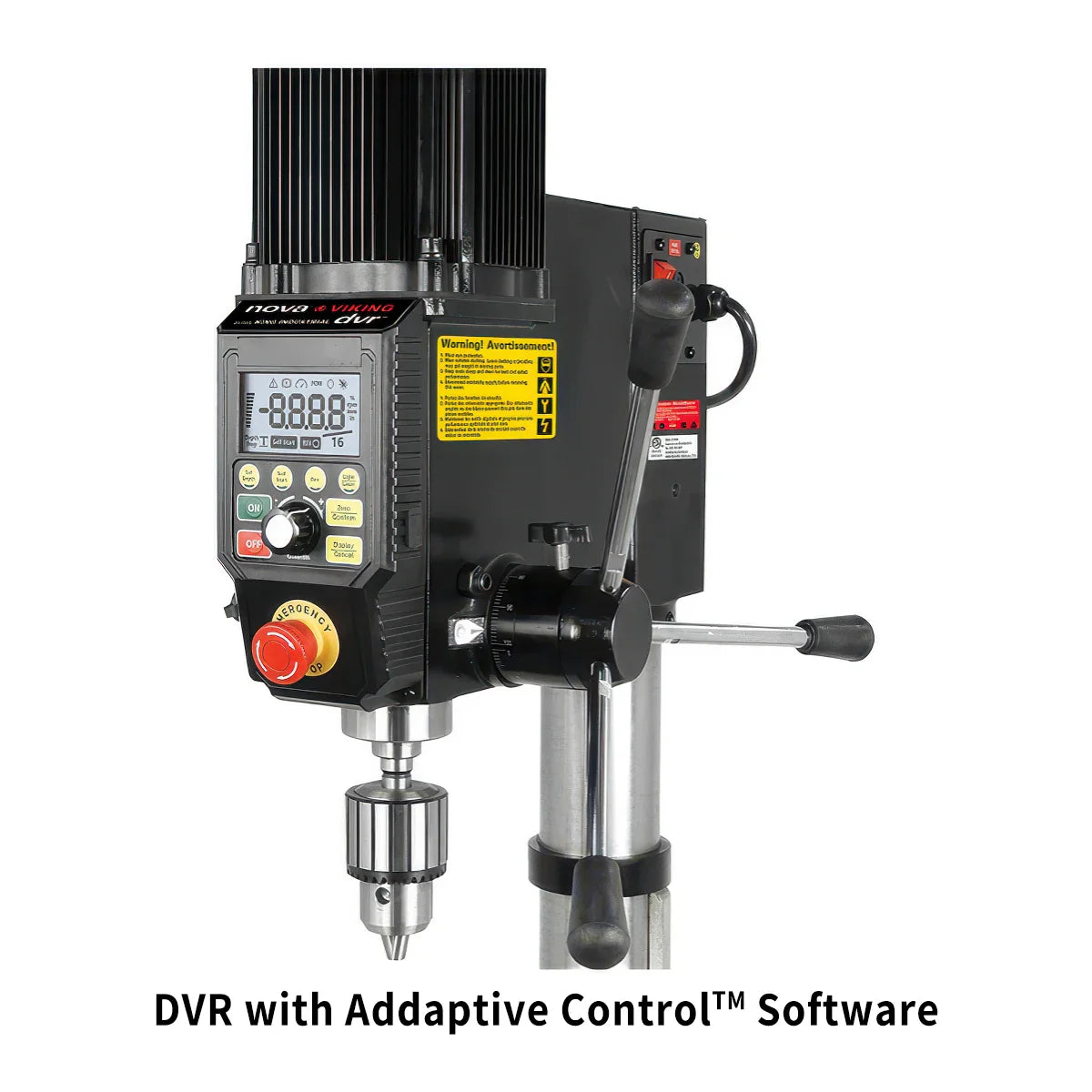

- Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive ControlTM Software which works for you to produce optimum results in wood, metal, plastic and glass
- Constant torque under load, depth and vibration sensors and emergency stop
- Intelligent speed selection and dial knob for precise speed adjustments
- Automatic electronic depth stop quickly and accurately stops to the precise programmed depth
- Electronic braking and forward/reverse
- Convenient LED light and twin laser guide system
- Comes with 5/8” drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys
Specifications
| CHUCK SIZE: | 5/8" |
|---|---|
| SWING: | 16" |
| MAXIMUM DISTANCE CHUCK TO TABLE: | 12-5/8" |
| MAXIMUM DISTANCE CHUCK TO BASE: | 22-5/8" |
| STROKE: | 4-1/2" |

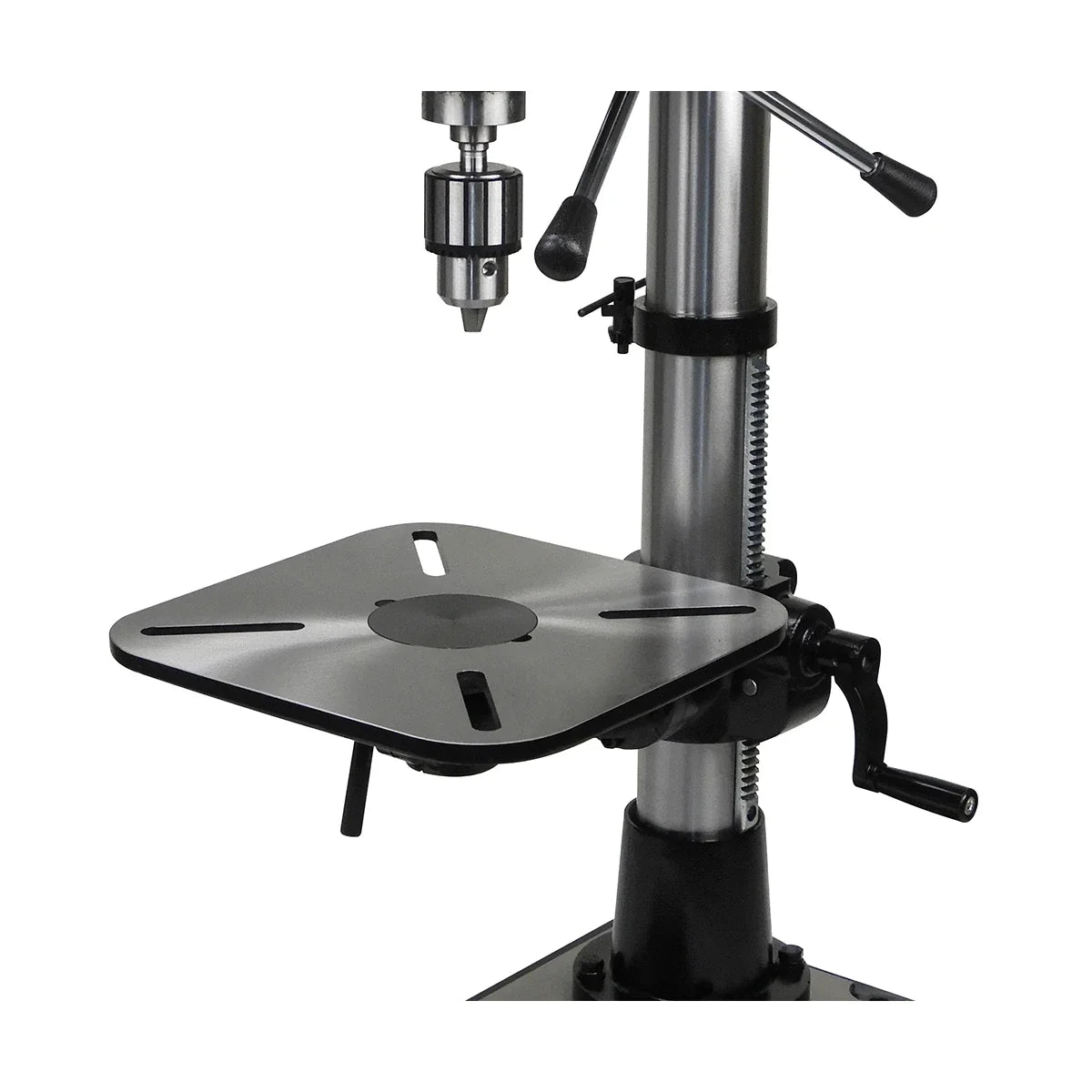

| TABLE SIZE: | 12-5/8" x 12-5/8" |
| SPINDLE TAPER: | MT #2 |
| QUILL DIAMETER: | 60 mm |
| VARIABLE SPEED RANGE (OPTIONAL SETTING): | 150 - 3,000 RPM (3,000 - 6,000) |
| MOTOR: | 1 HP,120V, 15A, 60Hz, 1-Phase |
| ASSEMBLED DIMENSIONS(LXWXH) / WEIGHT: | 12-5/8" x 20" x 44-3/4" / 154 lbs |
| PACKAGE DIMENSIONS(LXWXH) / WEIGHT: | 45-1/2" x 21" x 44-3/4" / 164 lbs |
