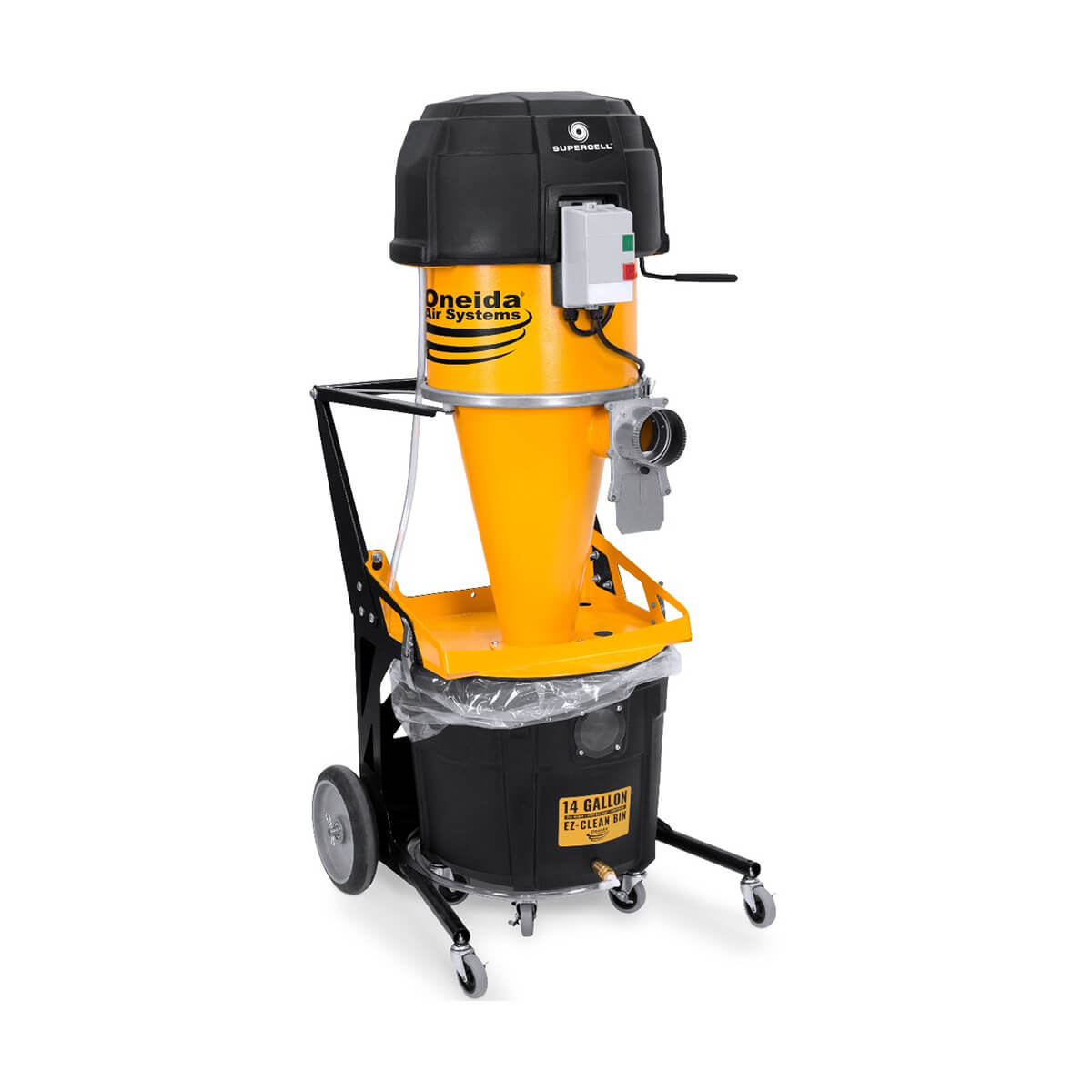

Supercell 14 Gal. Portable High-Pressure Dust Collector

Unbeatable Suction Power

What makes the Supercell unique in dust collection is its incredibly high static pressure rating (97.8" WC) - ten times higher than standard dust collectors - making it the only dust collector that collects from a 5" port just as well as a 1" port.

As air moves through ductwork it's met with resistance from the other air molecules and walls around it. Every length, turn, split, and reduction increases this pressure buildup and restricts how much air can move through the pipe at once, leaving dust on the tool. Standard collectors try to compensate for this by increasing the total air volume (CFM), but like adding more lanes to a highway, only so many cars can move off the exit ramp at once.

The Supercell's solution is to speed up the cars! Powered by three high-pressure blowers working in sync, the Supercell's high suction creates an intense vacuum system that moves the dust-laden air at a relentless pace, overcoming the resistance through up to 100 feet of 4" hose and ductwork!

• Use up to three 2.5" (or smaller) tool ports simultaneously.
• Low pitch noise level for operator comfort.
• Includes RF remote control that works through walls and up to 100 feet away.

Ultra-High Efficiency Steel Cyclone Separator

The Supercell features a long-tapered body that uses cyclonic force to spin 99% of dust and debris out of the airstream, containing it in an easy-to-empty 35-gallon drum beneath the cone.

• Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
• Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
• 4" diameter neutral-vane inlet for use with common ductwork and hose fittings.
• Industrial, heavy-gauge steel construction with full welded, airtight seams.
• Long-tapered design allows for more separation than the squat models of competitors.
• Oneida Air Systems' trademark gold, rust preventative, powder coat finish.

Integrated Pulse Filter Cleaner

There are few tasks worse than dealing with a clogged filter; cleaning them can be messy and time-consuming, and it's often the only way to restore suction. Now you can clean your filter without disassembling or turning off the system!

With the Supercell's built-in pulse cleaner, you never have to worry about downtime or dust clouds while cleaning your filter! A few quick taps on the pulse bar temporarily reverses the system's airflow, blasting dust off of the filter and safely into the drum below.

• Removes clogs from the filter in seconds.
• No disassembly required for maintenance.
• Minimizes owner's exposure to harmful dust clouds.

High Quality & Serviceable Filtration

The Supercell uses HEPA-certified filter media specifically designed for dust collection applications, providing unbeatable airflow and filtration performance.

• We fully stand by the quality and performance of our filters.
• Works at peak efficiency right out of the box - no "seasoning" required.
• HEPA-certified filter media rated as 99.97% efficient at 0.3 microns.
• Wide-spaced filter pleating coated with non-stick PTFE membrane to facilitate easy cleaning.
• Unique, conical design aids in dust release when pulsing the filter.

Automatic Bag Holder System

Waste disposal is made fast and simple thanks to the Supercell's automatic bag holder that uses negative pressure to hold disposable plastic liner bags open inside the drum. When you know the drum is full (thanks to the built-in dust level sensor), simply remove the lid, tie off the bag, and lift it out - no more carrying and dumping out large, heavy containers!

Automatic Dust Bin Level Sensor

Oneida Air Systems' patented Dust Sentry™ takes the guesswork out of using your vacuum! This adjustable optical sensor detects when the drum has been filled to a pre-set level and flashes a high visibility strobe light to alert you when it's time to empty.

Capable of detecting nearly any type of wet/dry material, the Dust Sentry will significantly streamline your workflow and put you back in control of how long you can keep working.

Compact & Adaptable Wall Mounted Design

Includes a heavy-gauge steel wall mounting bracket with convenient keyholes (hardware not included) to install nearly anywhere in the shop. The two halves of the cyclone (separated by a steel ring) can be independently rotated to suit your needs (i.e., the inlet can be turned to face left, forward, or right while the pulse bar and control box can be turned separately).

Product Warning: Only use vacuum pressure rated flex-hose* and duct with the Supercell dust collector. Under the system's high suction, standard hose/pipe may collapse causing affixed tools to be pulled towards the system, potentially causing damage and/or injury.
