Powermatic

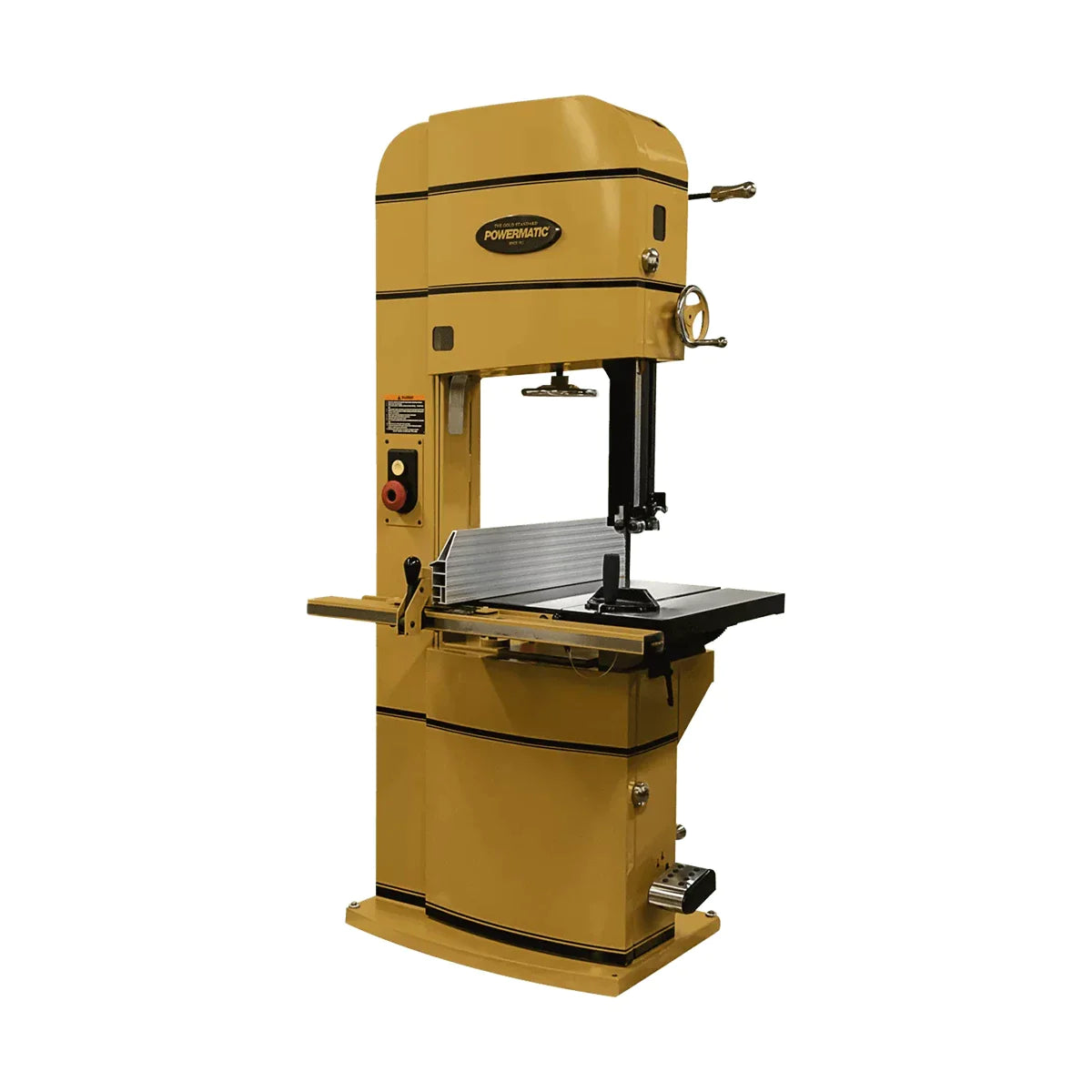

Powermatic® PM2013B 20" Bandsaw
Powermatic® PM2013B 20" Bandsaw
SKU: SKU:1791257B
Special Order Item
Upon receipt of your order you will be contacted to discuss delivery time and shipping options.
Need more information before placing your Order? Call us at 1-800-340-0233 or email info@woodenedge.ca
Couldn't load pickup availability
Powermatic® PM2013B 20" Bandsaw
SKU: 179125XB
- Overview
- Specifications
At Powermatic, they believe that ambition is the fuel that drives progress. Every product they engineer is born out of the same idea: How can they empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When they reimagined their line of bandsaws, they not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years.
Features:
- 5.0HP 230V 1-phase or 3-phase motor
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
- Rack and pinion table tilt system allows for easy and accurate adjustments
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
Available Power Options:
SKU: | Power |
---|---|
1791257B | 5.0HP, 230V, 60Hz, 1-Phase |
1791258B | 5.0HP, 230V, 60Hz, 3-Phase |
1791257B, 1791257B-3 1791257B3, PM9-1791257B, PM9-1791257B-3, PM91791257B, PM91791257B3, PM2013B, 1791258B, 1791258B-3 1791258B3, PM9-1791258B, PM9-1791258B-3, PM91791258B, PM91791258B3
Wheel Diameter: | 18" |
---|---|
Blade Length: | 170" |
Blade Speed: | 2300/4400 SFPM |
Cutting Capacity Height: | 18" |
Cutting Capacity Width: | 20" |
Dust Collection Minimum CFM Required: | 600 |
Dust Port Outside Diameter: | 4" |
Minimum Saw Blade Width" | 1/4" |
Maximum Saw Blade Width: | 1-1/2" |
Table Height from Floor" | 36" |
Table Tilt: | 45° Right / 10° Left |
Table Size: | 24" x 27" |
Motor: | 5.0HP 230V 60Hz 1-phase or 3-phase |
Recommended Circuit Size: | 30 Amp (20 Amp 3-phase) |
Assembled Dimensions: | 41-1/2” x 42” 81-1/2” |
Assembled Weight: | 860 lb (390 kg) |
Shipping Dimensions: | 40” x 33-1/4” x 87-1/2” |
Shipping Weight: | 959 lb (435 kg) |
