Rikon
14" Deluxe Bandsaw
14" Deluxe Bandsaw
SKU: SKU:10-326
Order today only 2 left
Couldn't load pickup availability
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

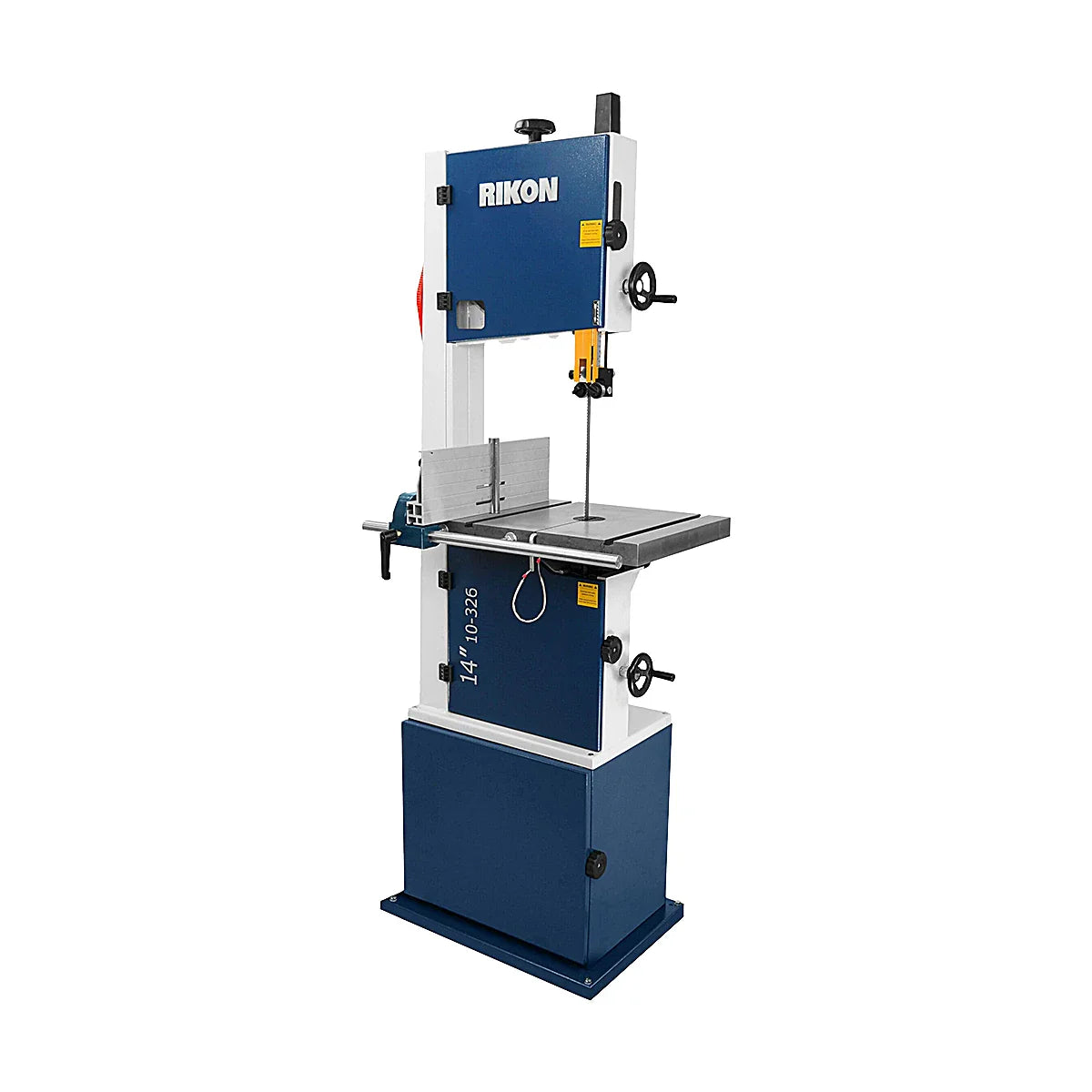

Rikon® 14" Deluxe Bandsaw
SKU: 10-326
- Overview
- Specifications

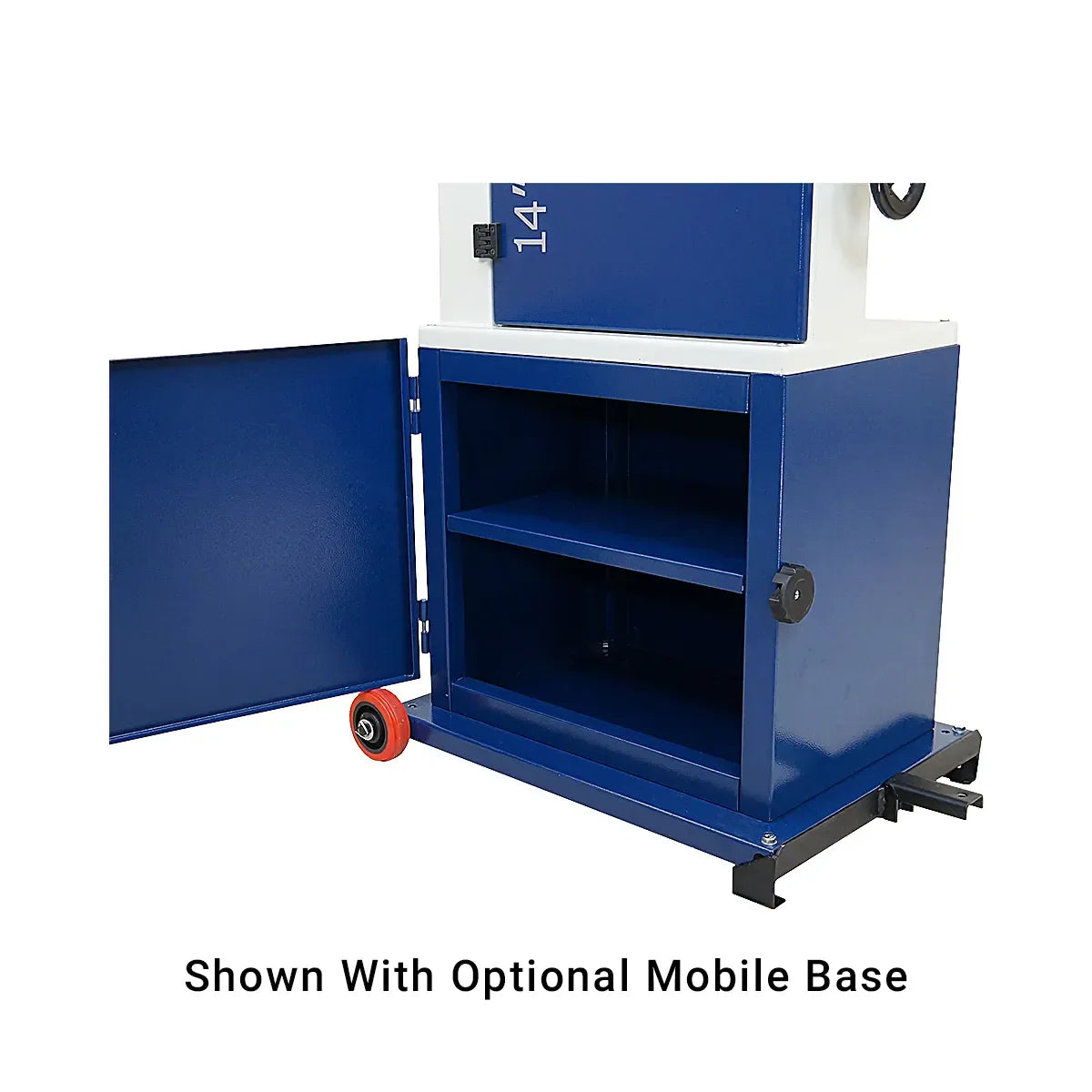

14” Bandsaw #10-326 is RIKON’s newest model with many Patented features that professionals will enjoy – including spring-loaded tool-less blade guides, quick-adjust fence system and quick-lock trunnion table angling system, plus, a quick release blade tension lever, large adjustment handles, hinged safety blade guard with sight window, high work table height, and storage cabinet base.
Its dual voltage, 1-3/4HP motor provides ample power for most every work encountered. Designed with two speed options – just change the drive belt on the pulleys to change from fast to a slower blade speed. Includes 6” tall rip fence with re-saw bar.
Wired for use with 3-wire 120V receptacles.
Features:
- 13″ Cutting Capacity
- Patented – Spring Loaded Tool-less Guide System

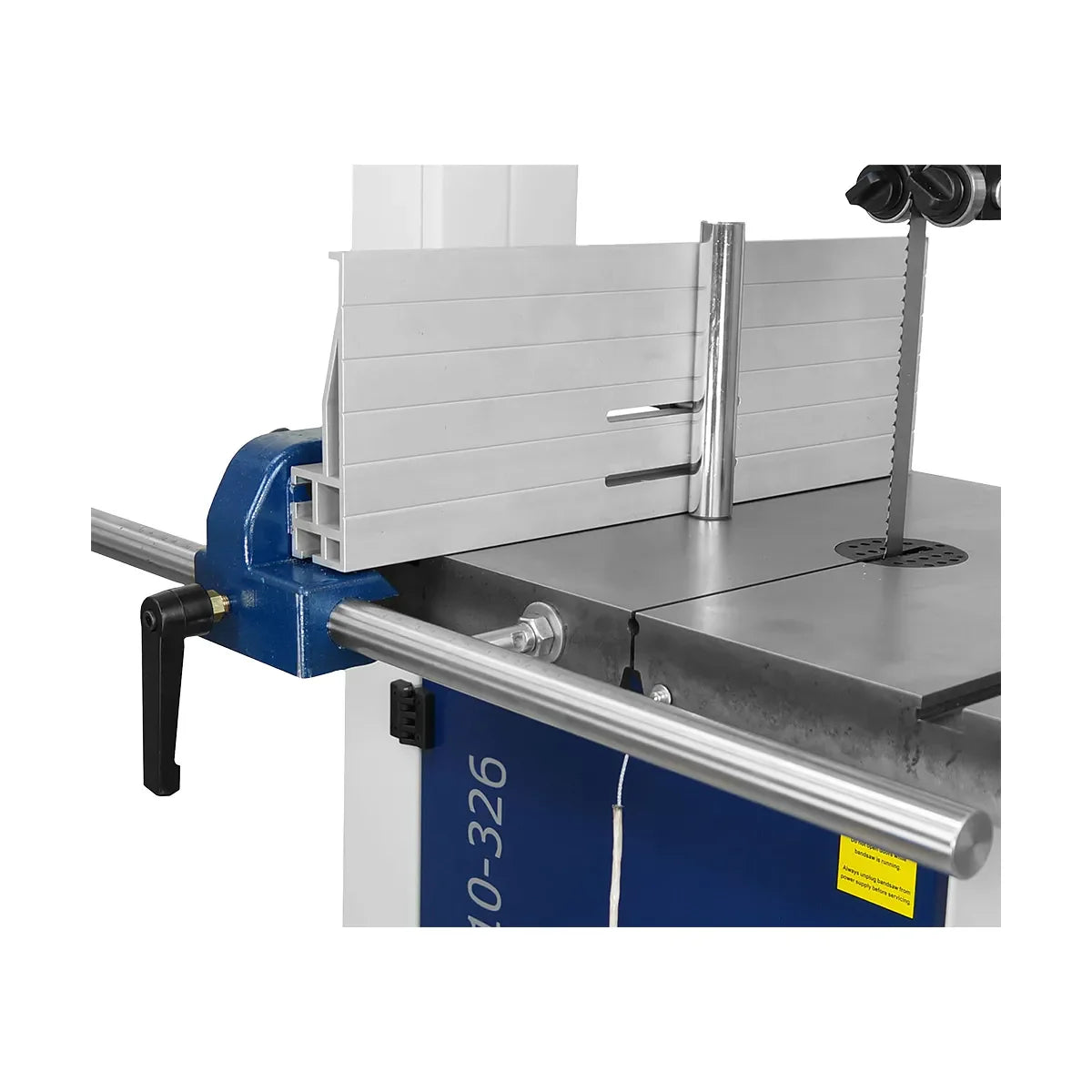

- Patented – Quick Adjust Fence System With 6″ Tall Rip Fence

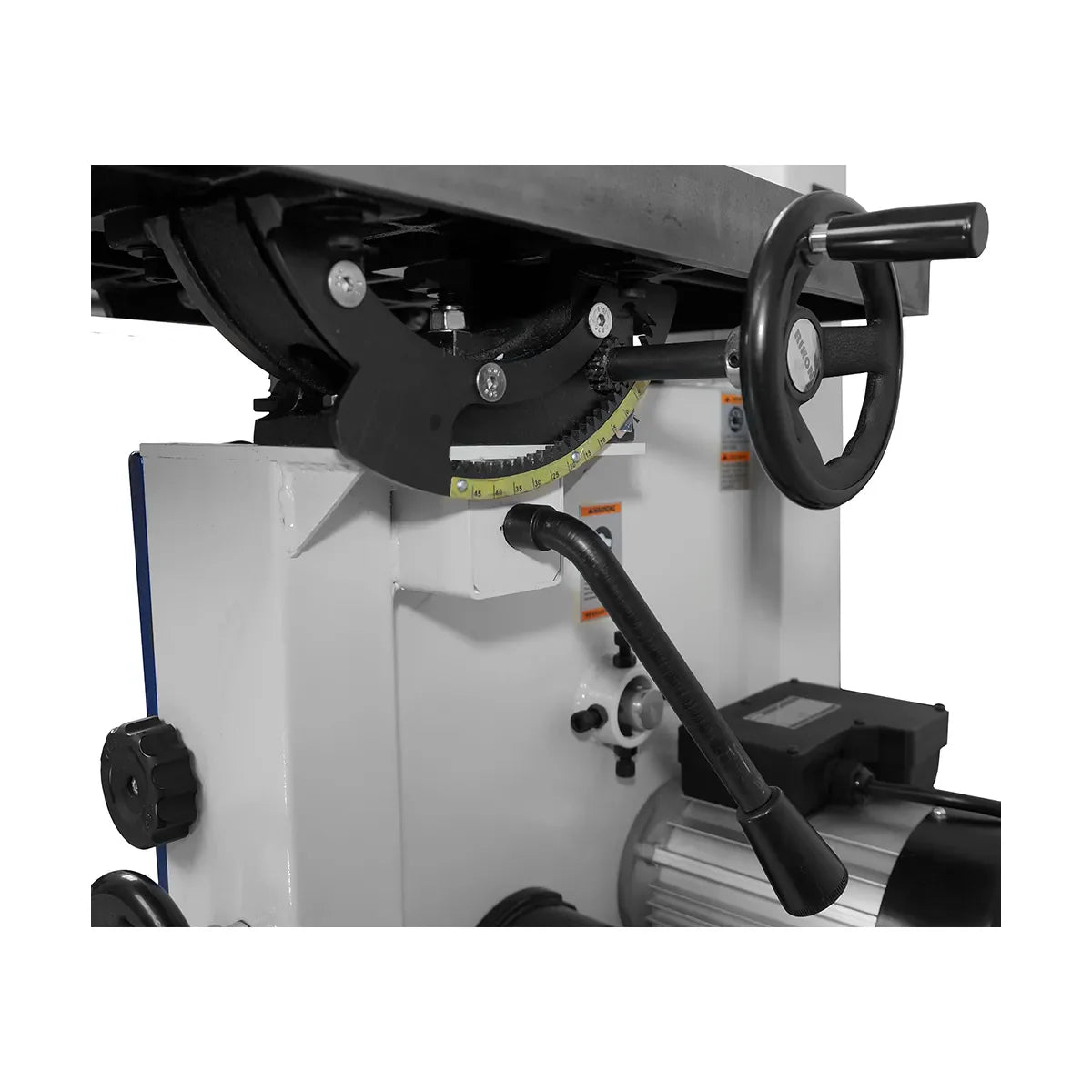

- Patented – Quick Lock Cast Iron Trunnion System
- 2 Speeds 1,445 / 2,950 FT / MIN.
- Large Cast Iron Table

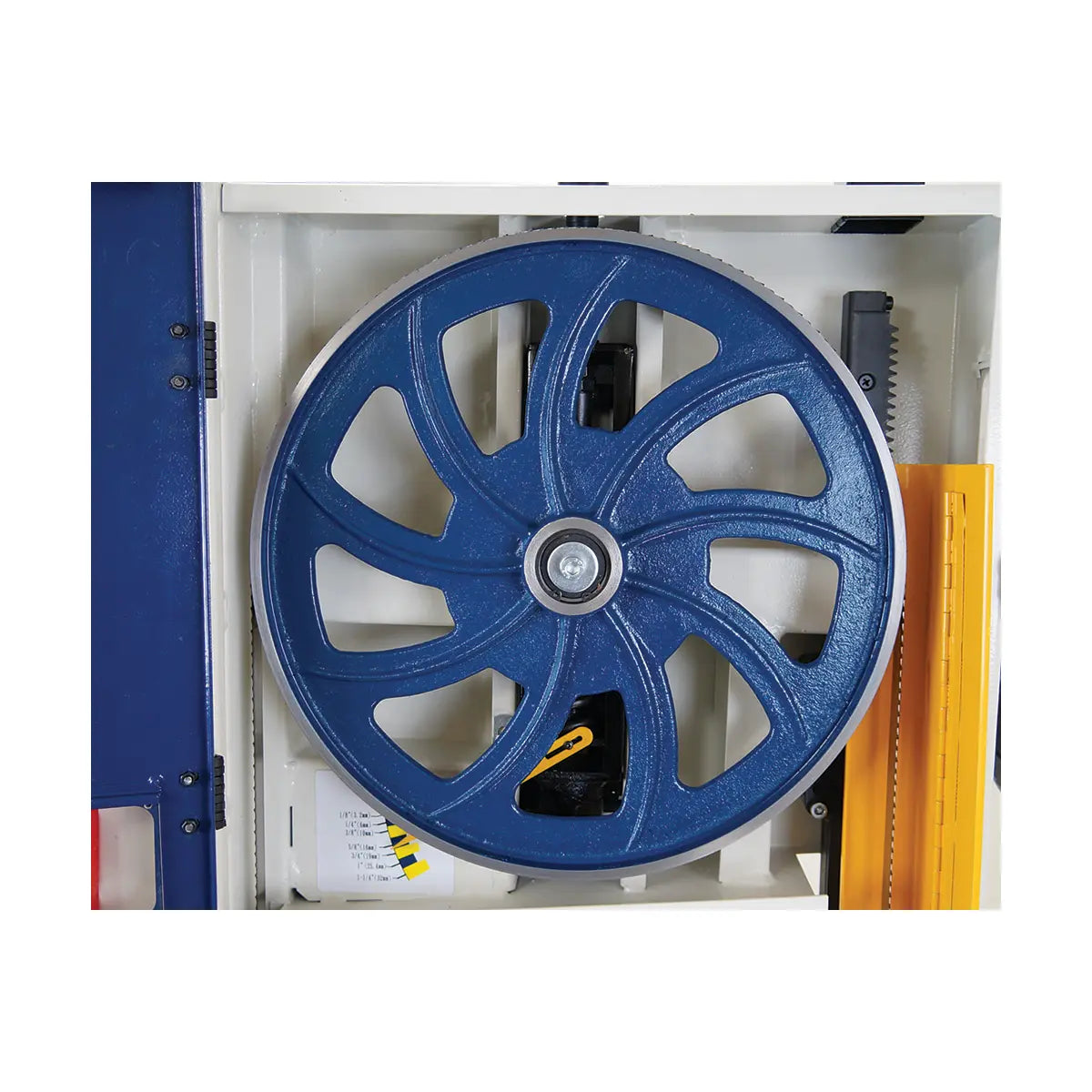

- Balanced Cast Iron Wheels
10326
Motor: | 1-3/4 HP, 115/230V, 14/7A 60Hz, 1-Phase |
---|---|
Blade Speeds: | 1,445/2,950 ft/min |
Cutting Capacity Height: | 13" |
Cutting Capacity Width: | 13-5/8" |
Blade Width: | 3/16” – 3/4” |
Blade Length: | 111” |
Table Size: | 21-1/2” x 15-3/4” |
Table Tilt (L/R): | -7°/45° |
Table Miter Gauge "T" Slot: | (2) 3/4” x 3/8” |
Table Height to Floor: | 40-1/2” |
Table Height to Base: | 20-7/8” |
Table Fence Size: | 18-3/4” x 1-3/4” x 6” |
Blade Guide Type: | Spring Loaded |
Table Trunnion: | Cast Iron |
Wheel Material: | Cast Iron |
Overall Height: | 74-1/2” |
Overall Width: | 33-3/4” |
Overall Depth | 25” |
Overall Base Size: | 24” x 17-5/8” |
Dust Port: | 4" |
Net Weight: | 285 lbs. |
