SawStop 10" Professional Cabinet Saw 36" Fence 3HP 1-Phase

SawStop

sawstop pcs promo

Purchase a qualifying SawStop Cast Iron Table Saw
and receive a "FREE" Gift Set

* Free upgrade provided by SawStop
Offer Valid Until December 31st, 2024
Use this link to claim your Gift Set

10" Professional Cabinet Saw 36" Fence 3HP 1-Phase

SKU: PCS31230-TGP236

Currently Out of Stock
Order Now and we will contact you with the availability date

Your Credit Card will not be charged until the availability date is accepted.

$4,973.00

T

Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.

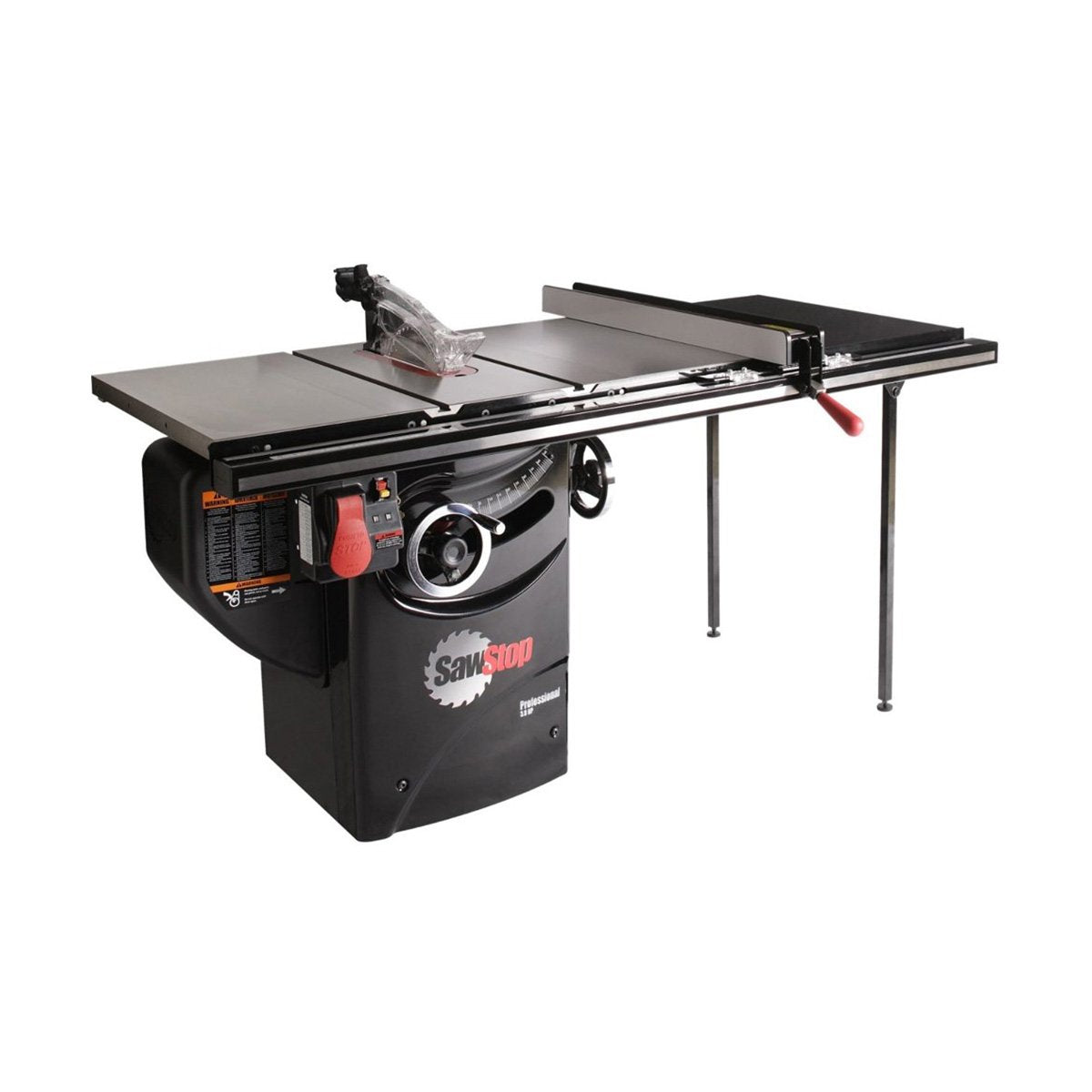

SawStop® 10" Professional Cabinet Saw 36" Fence 3HP 1-Phase

SKU: PCS31230TGP236

The 3.0HP SawStop® 10" Professional Cabinet Saw provides superior performance to meet the demands of discerning craftsmen and woodworkers. With SawStop®'s legendary safety system, groundbreaking 99% dust collection and peerless fit and finish it's ready to help you get the job done.

Features:

  • Deluxe T-Glide Fence System
  • 220V, 3.0HP model is engineered for the avid hobbyist and discerning professional
  • Safety System - Automatically stops and retracts the blade on contact with skin
  • A diagnostic self-check runs when you start the saw to ensure all systems are ready to detect an accident. If any problem is detected, the system will not allow the saw to start.
  • Tool-Free Quick-Change Blade Guard - Mount Make fast and easy transitions between blade guard and riving knife with no tools required
  • Features a quick-release mechanism for tool-free access to the saw cavity
  • 99% Efficient Dust Collection - Advanced control of over-and-under table airflow captures dust at the blade and directs it out of the saw
  • Fence and Rails Infinitely adjustable - T-Glide rail system and widely spaced glide plates provide smooth travel along the length of the table
  • Dust Collection Blade Guard (included with the 3.0HP model, optional for the 1.75HP model). This innovative blade guard collects above-table dust and features independent lateral sides to minimize exposure to the blade. It retains a low profile to allow for cuts as narrow as 3/4 of an inch.
  • Riving knife minimizes kickback and provides protection during non-through cuts.
  • Fit and Finish - Attention to detail, premium craftsmanship and rigorous engineering combine to create a saw you'll love to use
  • Precision Alignment System - Adjust the blade and table alignment with precision not found on other saws
  • When the power goes out, the saw stays off. The safety system won't allow the motor to restart automatically when the power comes back on.
  • Left-tilting blade helps prevent wood from binding against the fence.
SawStop®, the SawStop® blade logo, and the configurations of SawStop® products are either registered trademarks or trademarks of SawStop®, LLC and are used with permission.
3.0HP 230V
Overall saw dimensions: 69 1/8" w x 33" d x 34" h
Motor: 3HP, 230V, 13A, 60Hz, 1- phase
Shipping weight (approx.) 505 lbs.
Max. rip, right of blade: 36"
Cabinet footprint: 19 3/8" w x 19 3/8" d
Cast iron table: 20" w x 27" d, 44" w x 27" d (w/ extension wings)
Extension wing: 12" w x 27" d
Blade: 40-tooth, professional-grade, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0°: 3 1/8"
Max. depth of cut, blade at 45°: 2 1/4"
Max. rip, left of blade: 12"
Dado diameter: 8" (requires a separate brake cartridge and table insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 1/4"
Table behind blade (max. elevation): 7 1/2"
Arbor runout: 0.001" Maximum allowable runout
Blade lateral movement over full elevation range: 0.006" Maximum
Table flatness measured diagonally: 0.010" Maximum gap
Overall table and extension wing flatness: 0.025" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25°
Alignment between spreader and blade: 0.010" Maximum difference
Miter slots: T-shaped, 3/4" at top, 1" at bottom, 3/8" deep
Dust collection port diameter: 4"
Riving knife/splitter thickness: 0.078" (2mm)
Blade guard: polycarbonate extends only 5/8" to the right of the blade
Insert: zero clearance, steel core, ABS surfaces
Handwheels: 7" diameter, cast iron with chrome handle
Belts: 2 V-ribbed belts - arbor belt is static dissipative
