SuperMax Tools
25" Double Drum Sander
25" Double Drum Sander
SKU: SKU:SUPMX-913002
Order today only 1 left
Couldn't load pickup availability
Due to size and/or weight restrictions this item is not covered under the Free Shipping policy. This items shipping cost is estimated only, you will be contacted with the actual shipping cost before your credit card is charged.
SuperMax 25" Double Drum Sander
SKU: SUPMX-913002
- Overview
- Specifications
Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.
The 25×2 Double Drum Sander features INTELLISAND® Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base and features a 5 HP motor.
Features:
-

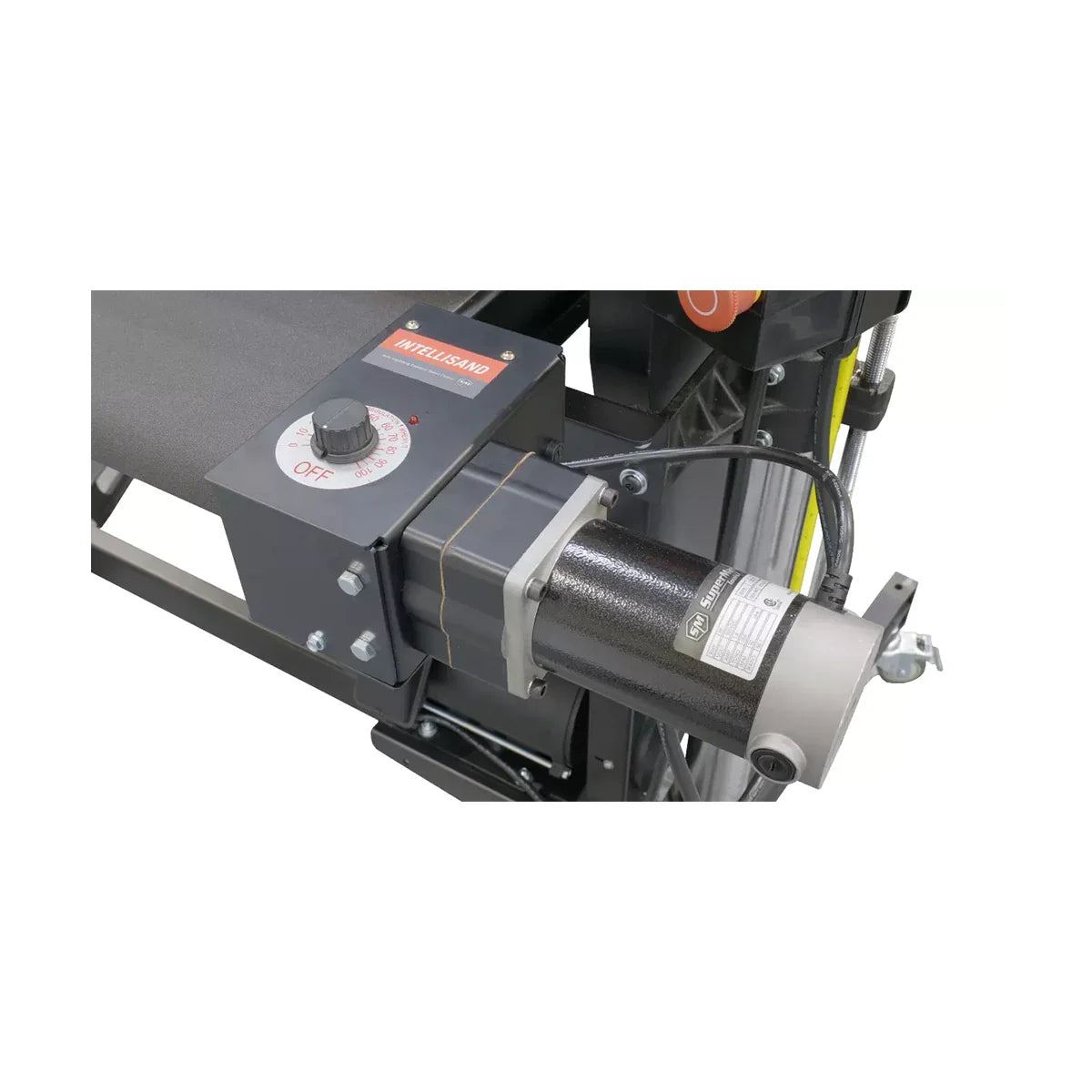

INTELLISAND®Technology:Automatically adjusts conveyor speed based on load
Prevents gouging, damaging or burning stock
Provides consistent finish even with varying grain pattern and density
Greatly increases abrasive planing and dimensioning speed - Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner

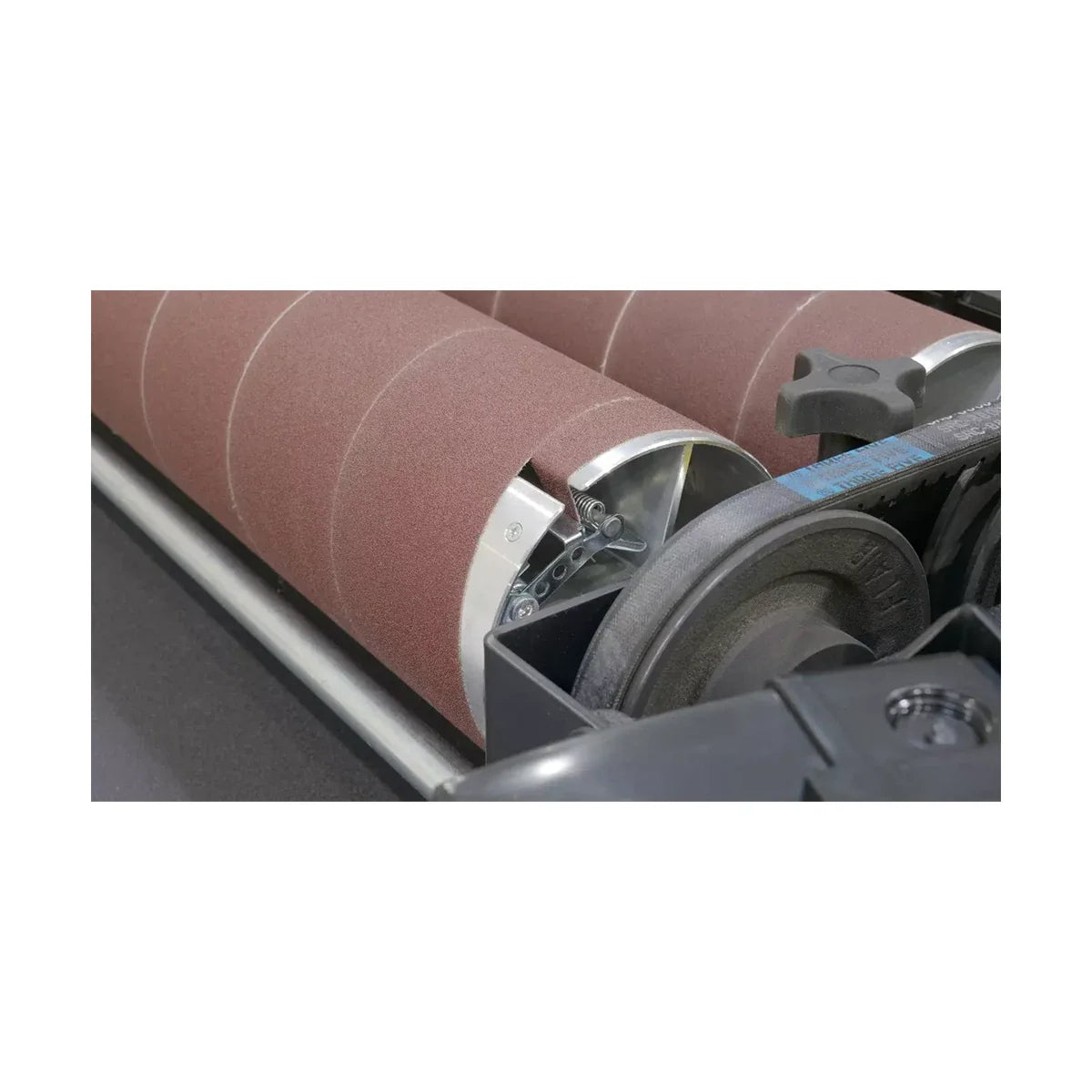

- Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
- Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
- Self-cooling drum prevents overheating and extends abrasive life
- Tension rollers are adjustable in height and hold down pressure, eliminating snipe
- Excellent dust extraction as dust cover is formed to shape of drum
- Heavy-duty cast iron construction for strength, rigidity and reduced vibration
- Mobile base allows for stand and machine to be to moved easily
Please Note: Cord & Plug are not included.
SUPMX913002
Drive Motor (TEFC): | 208-230V, 30A, 60Hz, 1-Phase |
---|---|
Conveyor Motor: | 100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM |
Maximum Sanding Width: | 25" |
Minimum Sanding Length: | 3-1/2" |
Maximum Sanding Thickness: | 6" |
Minimum Sanding Thickness: | 1/32" |
Drum Size: | 5" x 25" |
Drum Speed: | 1740 RPM |
Dust Hood Ports: | Two 4" (Recommended Minimum CFM 1,000) |

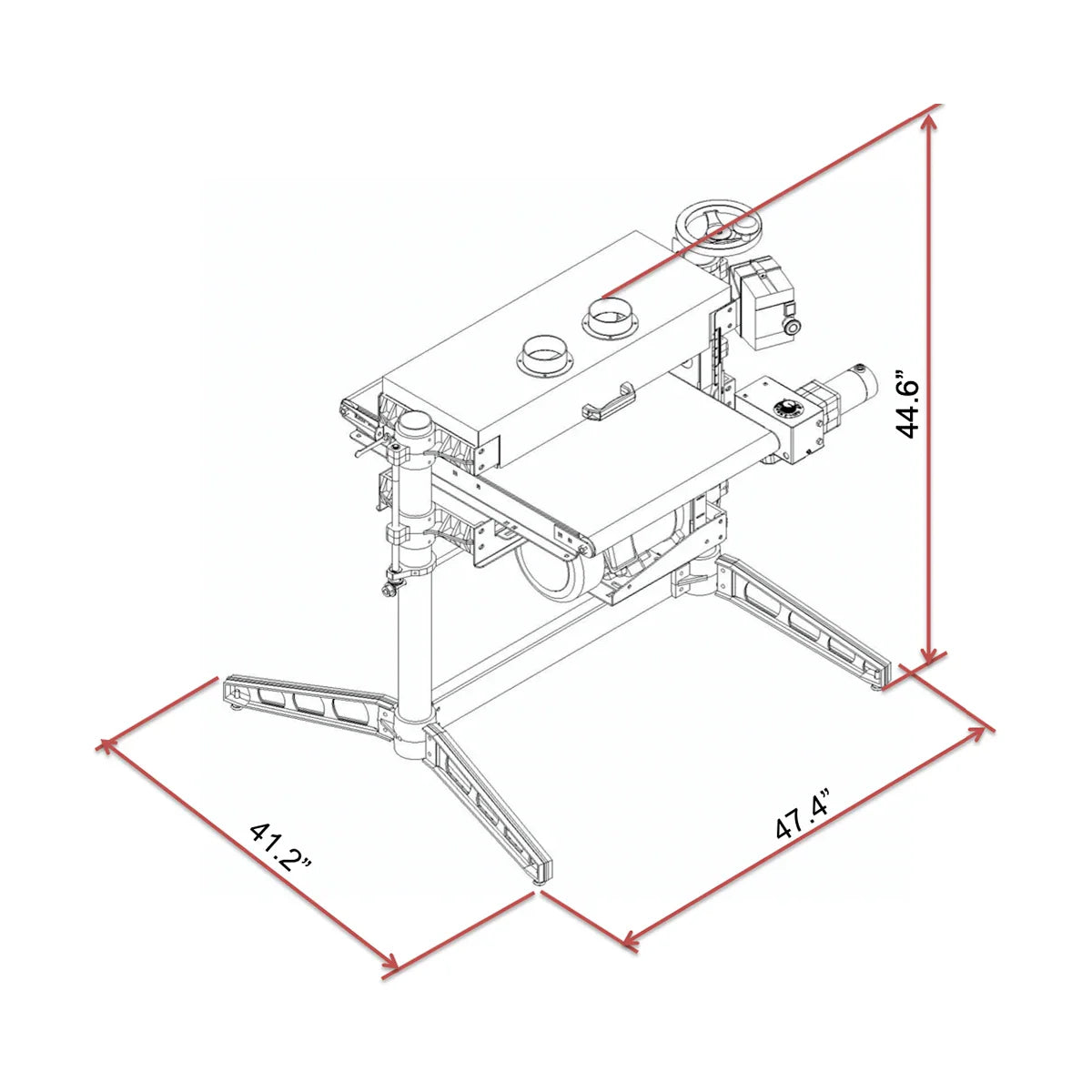

Dimensions (H x W x D): | 43″ x 46″ x 31″ |
Shipping Dimensions (L x W x H): | 50″ x 44-½″ x 44-½ |
Shipping Weight: | 475 lbs |
Please Note: Cord & Plug are not included.
