Whiteside WH2640 Laminate Trim Bit 1/4" SH, 1/2"CD, 1/4"CL

Whiteside

Laminate Trim Bit 1/4" SH, 1/2"CD, 1/4"CL

SKU: WH2640

order today only 11 left in stock
$36.42

T

Free Shipping

Click Checkmark for Details

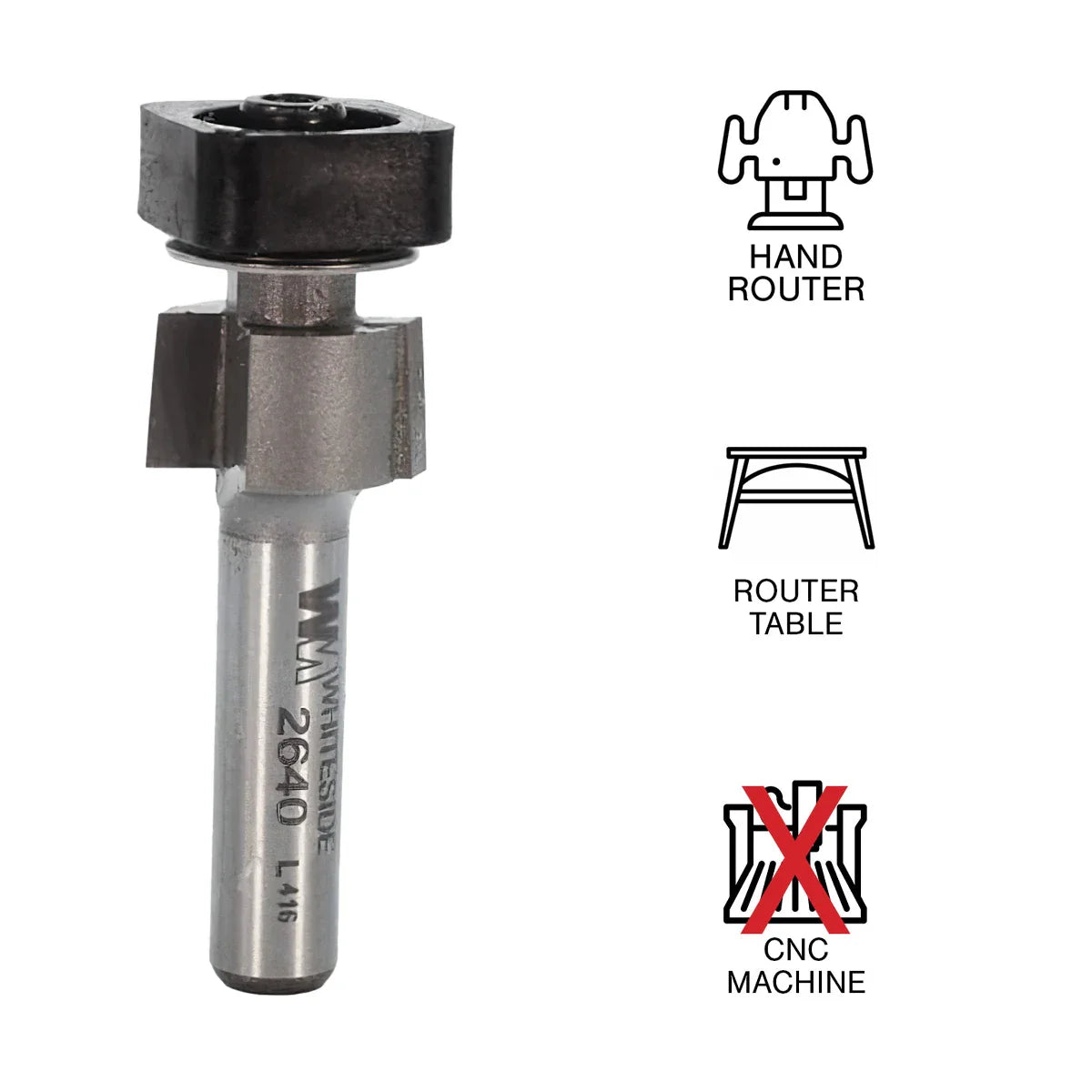

Whiteside Laminate Trim Bit 1/4" SH, 1/2"CD, 1/4"CL

SKU: WH2640

Shank : 1/4"
Cutting Diameter: 1/2"
Cutting Length: 1/4"
Overall Length: 1-5/8"
Bearing Number: B3SQ

Here's a Square Deal: a quality Whiteside Trim Bit with the exclusive Euro Square Bearing. How does it work? The square bearing stops spinning as soon as it touches the workpiece. Then, the side of the square simply slides along the workpiece edge. Compare this to a regular bearing that rolls along the edge - building up more glue and residue with every revolution. Plus, the square is made from a non-stick material, so it wipes clean easily, and it won't mark your workpiece. If you cut laminates, you need to try this bit.

These bits are designed with a slight taper on the cutting diameter. This allows up or down adjustment to achieve an exact blend - even after resharpening.

Recommended RPM: 16,000-18,000 (max 24,000)

For Cutting

  • Natural Woods
  • Composite Woods
  • Laminates
  • Hard Plastic

2640
